Release Info
| Catalog ID | CAM-BE |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1992 |
| Publisher | Camerica |
| Developer | Codemasters |
| Players | 2 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Camerica |
|---|---|
| Color | Silver |
| Form Factor | NES Cart |

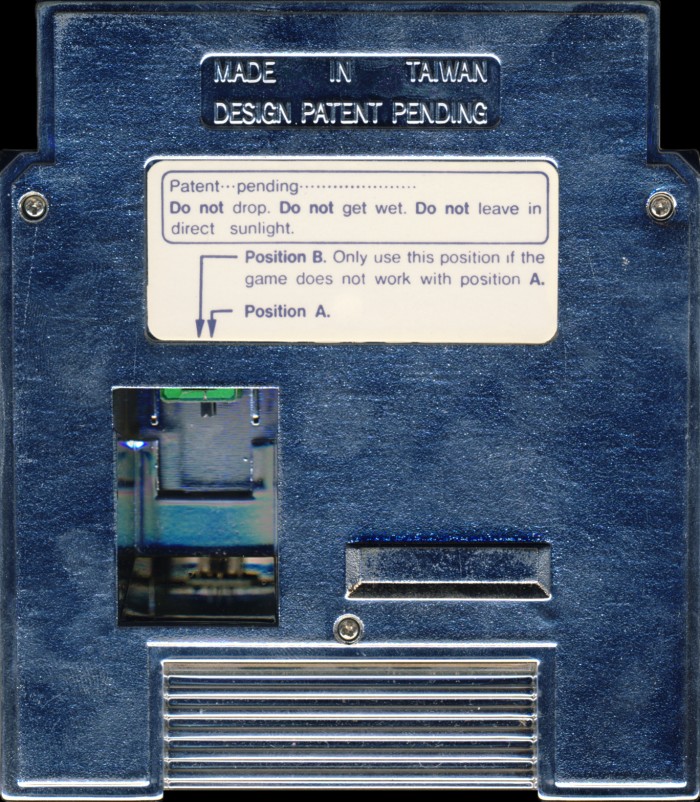

| Embossed Text | Made in Taiwan Design Patent Pending |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | BIC-64 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 9207 |
| Est First Run | February 1992 |
| PCB Class | CAMERICA-BF9093 |
| iNES Mapper | 71 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | CIC Stun |
| Hardware | BF9093 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | COBIC BE-V1 | 64 KB | 6C93377C | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Hyundai | BF9093 | Camerica BF9093 | DIP-20 | 9207 T | 9207 | |
| U2 | Samsung | KM23C512 | Mask ROM 64 KB | DIP-28 | |||
| U3 | Vitelic | V63C64S45 | SRAM 8 KB | SDIP-28 | 9105 | 9105 |
