Release Info
| Catalog ID | NES-4B-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | May 1991 |
| Publisher | LJN |
| Developer | Rare |
| Players | 1 |
| Peripherals | NES Controller |

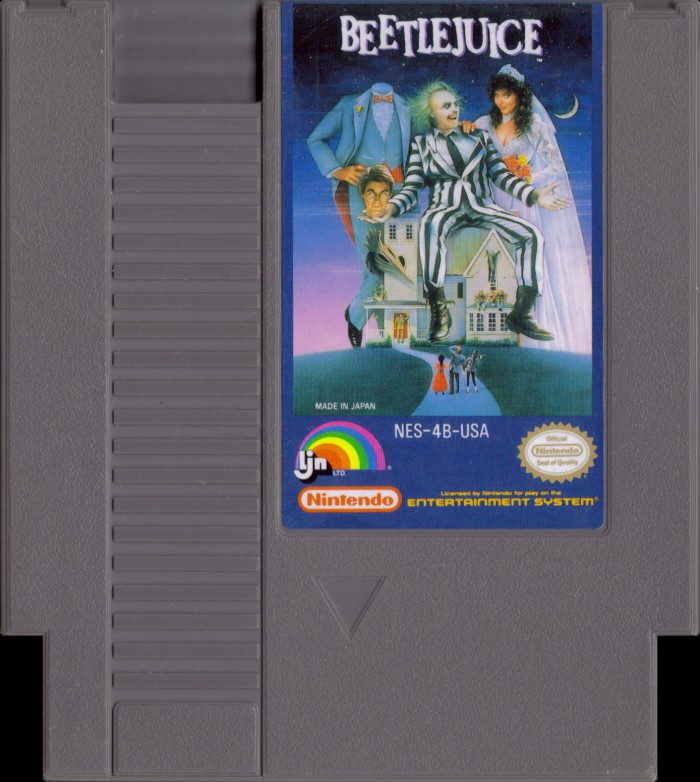

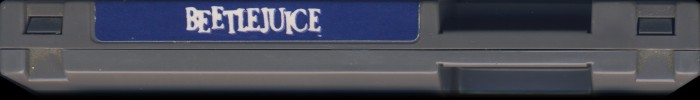

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-4B-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 12 |
PCB Properties
| Name | NES-AMROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9116 |
| Est First Run | April 1991 |
| PCB Class | NES-AMROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-4B-0 PRG | 128 KB | EB84C54C | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 48 | Mask ROM 128 KB | DIP-28 | 9116 E | 9116 | |
| U2 CHR-RAM | Phillips | FCB61C65-70P | SRAM 8 KB | DIP-28 | 9014 HSH | 9014 | K0E029NB |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 052 C | 9052 | |
| U4 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 035 EN | 9035 |
