Release Info
| Catalog ID | NAM-NPW-4900-13 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 2, 1986 |
| Publisher | Namco |
| Developer | Data East |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | 13 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

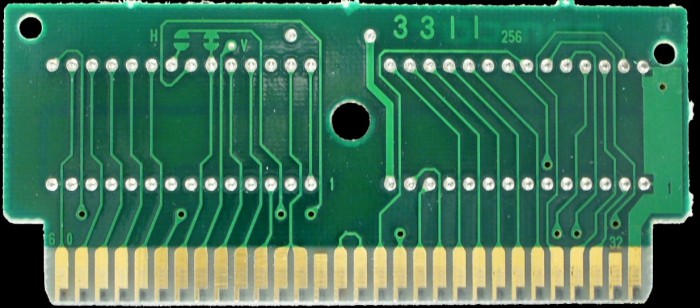

PCB Properties
| Name | 3311 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8550 - 8610 (6) |
| Est First Run | December 1985 |
| PCB Class | NAMCOT-3311 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | EDD7479A | 6 |
| CHR0 | Not Present | 8 KB | C8C6AEC3 | 6 |
| N/A | ROMs Combined | 40 KB | 32FA246F | 6 |

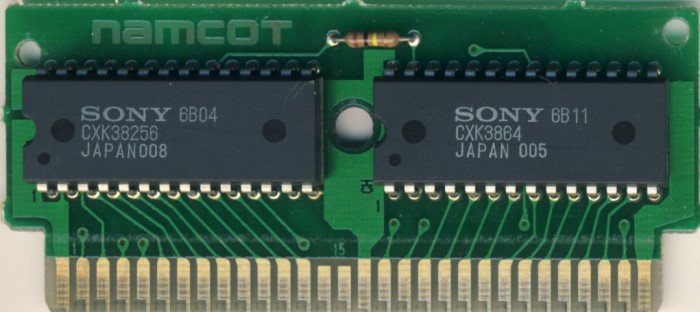

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Sony | CXK38256 008 | Mask ROM 32 KB | DIP-28 | 6B 04 | 8605 | |
| CH | Sony | CXK3864 005 | Mask ROM 8 KB | DIP-28 | 6B 11 | 8605 |
