Release Info
| Catalog ID | KON-RC845 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 22, 1989 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

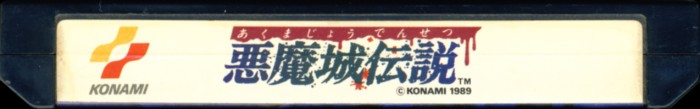

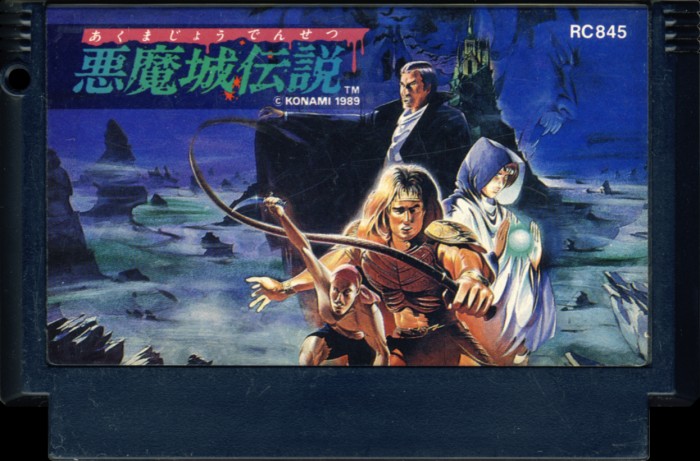

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC845 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

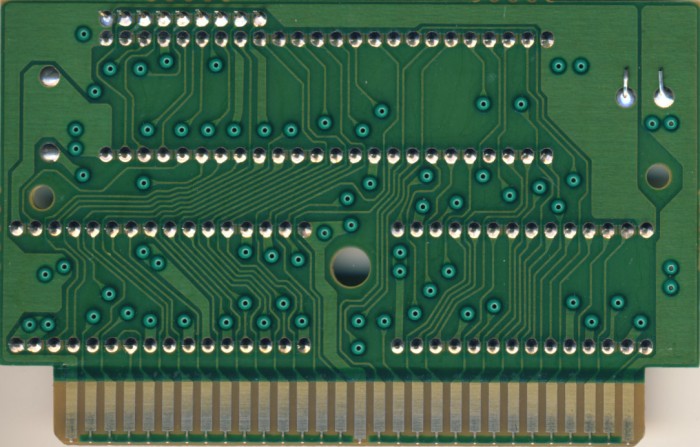

PCB Properties
| Name | 351951 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8947 |
| Est First Run | November 1989 |
| PCB Class | KONAMI-VRC-6 |
| iNES Mapper | 24 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | VRC6 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC845J0.0P | 256 KB | BA6BDD6A | 1 |
| CHR0 | RC845J0.1C | 128 KB | BF15255C | 1 |
| N/A | ROMs Combined | 384 KB | E349AF38 | 1 |

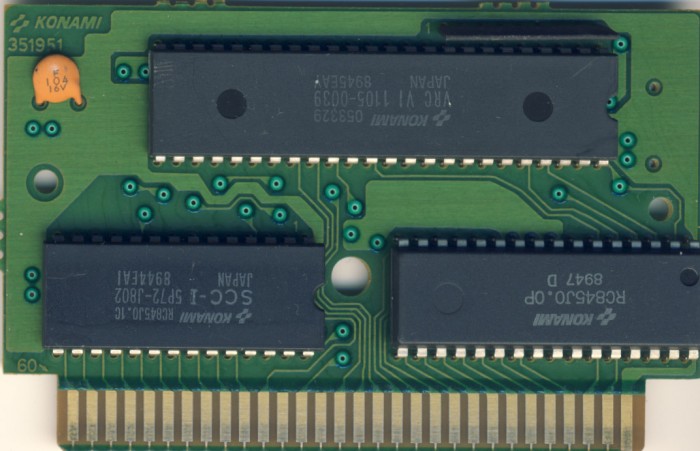

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 8947 D | 8947 | ||
| Toshiba | SCC-I5P72 J802 | Mask ROM 128 KB | DIP-28 | 8944 EAI | 8944 | ||
| Toshiba | 053329 VRC VI | Konami VRC VI | DIP-48 | 8945 EAI | 8945 | 1105-0039 |
