Release Info
| Catalog ID | BA-DBZ2 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 10, 1991 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

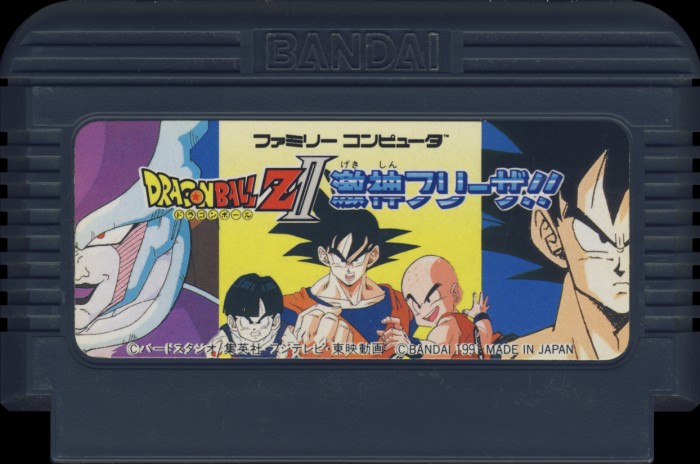

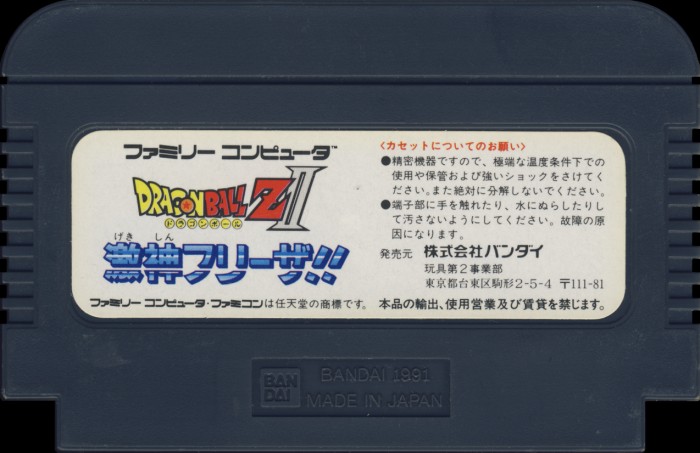

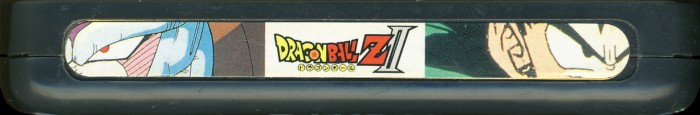

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

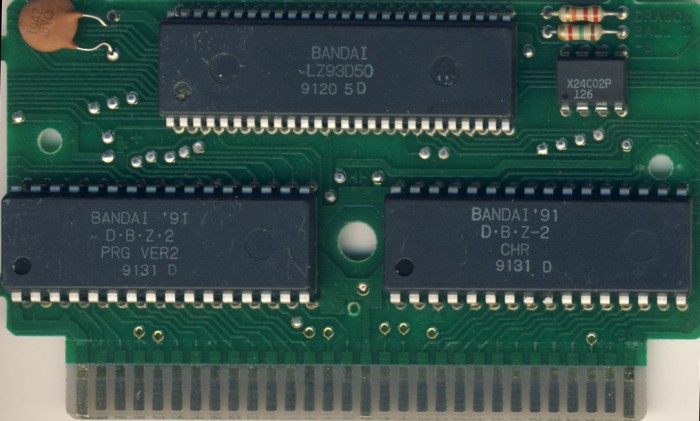

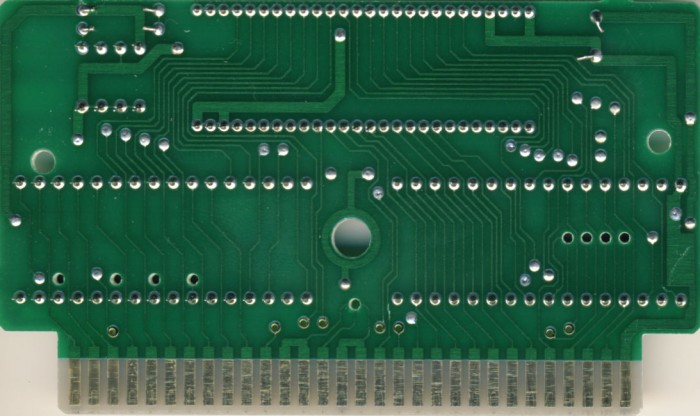

PCB Properties
| Name | DRAGON BALL Z-B |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 9127 - 9132 (6) |
| Est First Run | July 1991 |
| PCB Class | BANDAI-LZ93D50+24C02 |
| iNES Mapper | 16 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 24C02, FCG-3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI '91 D·B·Z·2 PRG VER2 | 256 KB | E49FC53E | 5 |
| CHR0 | BANDAI'91 D·B·Z-2 CHR | 256 KB | 6E2DF8BD | 6 |
| N/A | ROMs Combined | 512 KB | A9541452 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 9131 D | 9131 | ||
| Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 9131 D | 9131 | ||
| Sharp | LZ93D50 | Bandai FCG-3 | DIP-52 | 9120 5 D | 9120 | ||
| Xicor | X24C02P | Serial EEPROM 2 kb | DIP-8 | 126 | 9126 |
