Release Info
| Catalog ID | BA-DBZ3 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 7, 1992 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

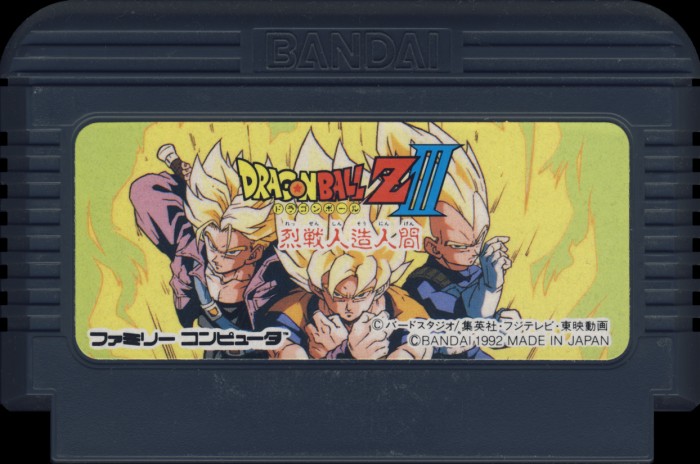

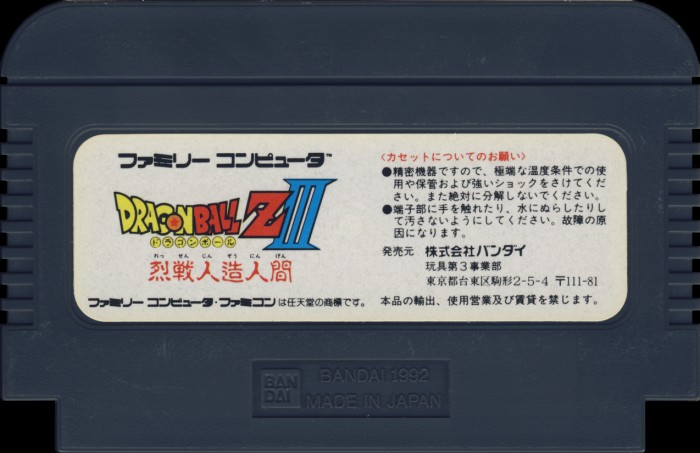

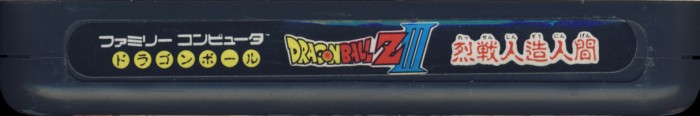

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

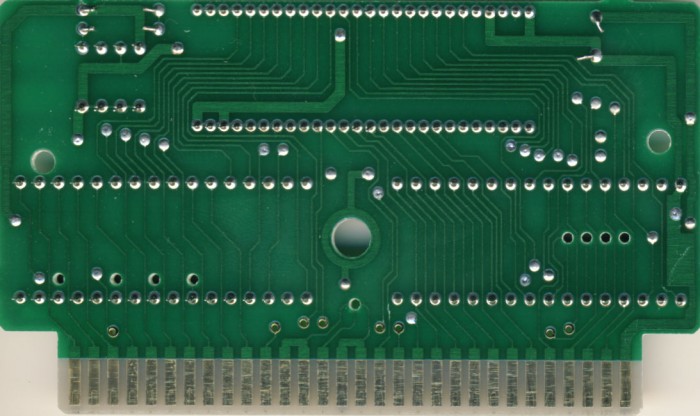

PCB Properties
| Name | DRAGON BALL Z-B |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 9227 - 9229 (8) |
| Est First Run | July 1992 |
| PCB Class | BANDAI-LZ93D50+24C02 |
| iNES Mapper | 16 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 24C02, FCG-3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | DBZ-3 PRG | 256 KB | 09499F4D | 8 |
| CHR0 | DBZ-3 CHR | 256 KB | E8FCFE95 | 8 |
| N/A | ROMs Combined | 512 KB | DC52BF0C | 8 |

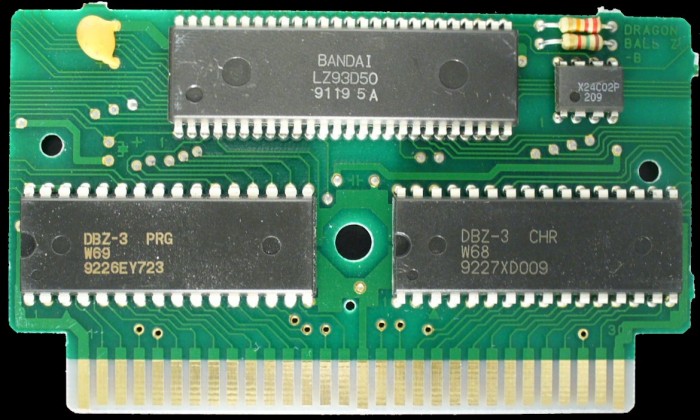

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 9226 EY723 | 9226 | ||
| NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 9227 XD009 | 9227 | ||
| Sharp | LZ93D50 | Bandai FCG-3 | DIP-52 | 9119 5 A | 9119 | ||
| Xicor | X24C02P | Serial EEPROM 2 kb | DIP-8 | 209 | 9209 |
