Release Info
| Catalog ID | JF-06 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 15, 1985 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

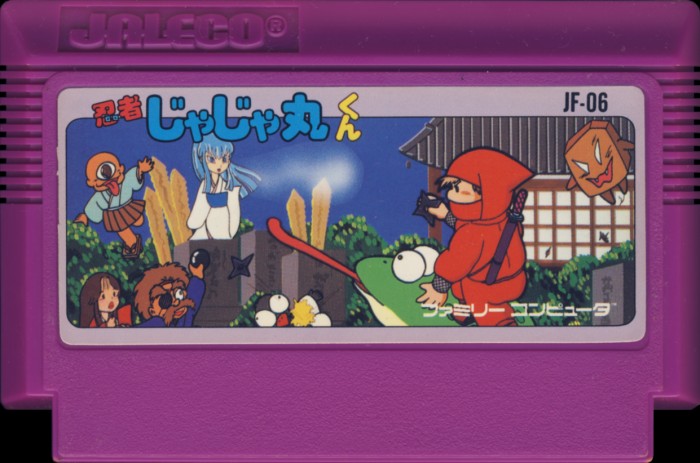

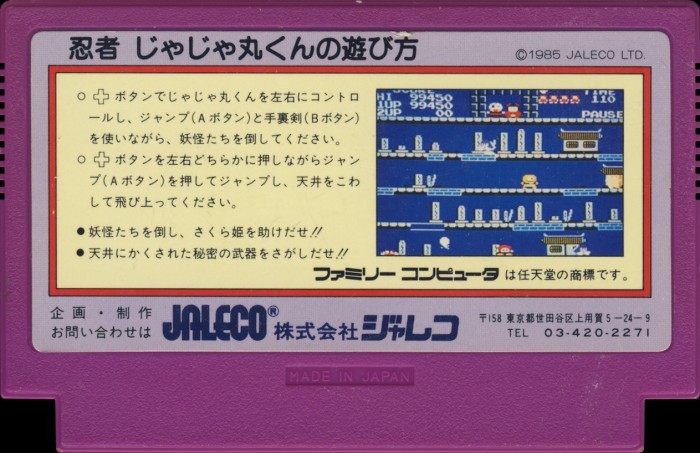

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Purple |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | JF-06 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

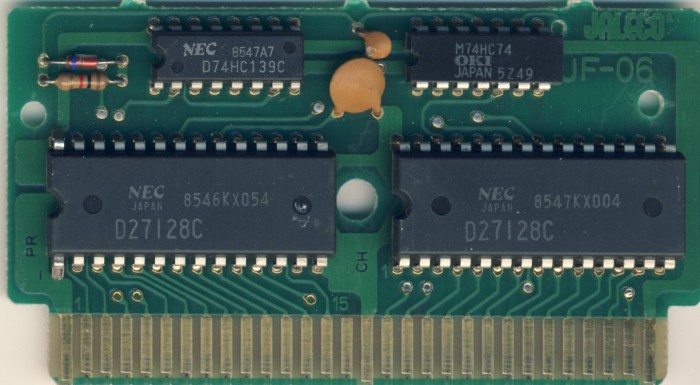

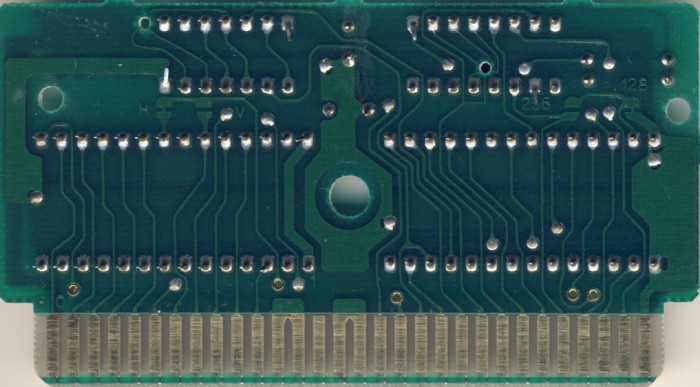

PCB Properties
| Name | JF-06 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8542 - 8602 (10) |
| Est First Run | October 1985 |
| PCB Class | JALECO-JF-06 |
| iNES Mapper | 87 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | 767A6A66 | 9 |
| CHR0 | Not Present | 16 KB | 35BEA742 | 9 |
| N/A | ROMs Combined | 32 KB | D97595A3 | 9 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | NEC | D27128C | PROM 16 KB | DIP-28 | 8546 KX054 | 8546 | |
| CH | NEC | D27128C | PROM 16 KB | DIP-28 | 8547 KX004 | 8547 | |
| NEC | D74HC139C | 74-139 Series | DIP-16 | 8547 A7 | 8547 | ||
| OKI | M74HC74 | 74-74 Series | DIP-14 | 5Z 49 | 8548 |
