Release Info
| Catalog ID | JF-06 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 15, 1985 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

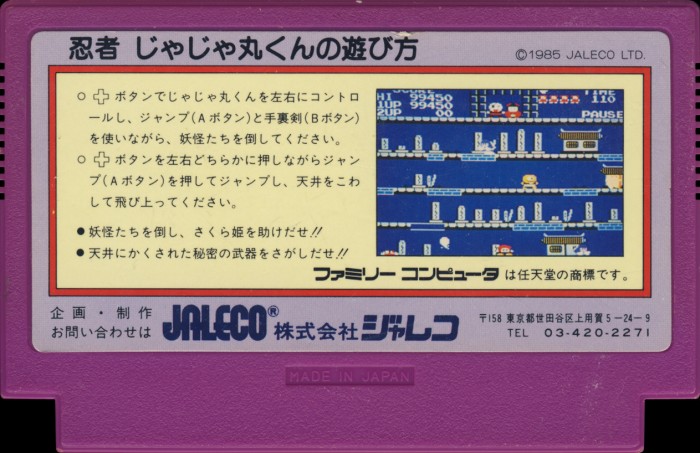

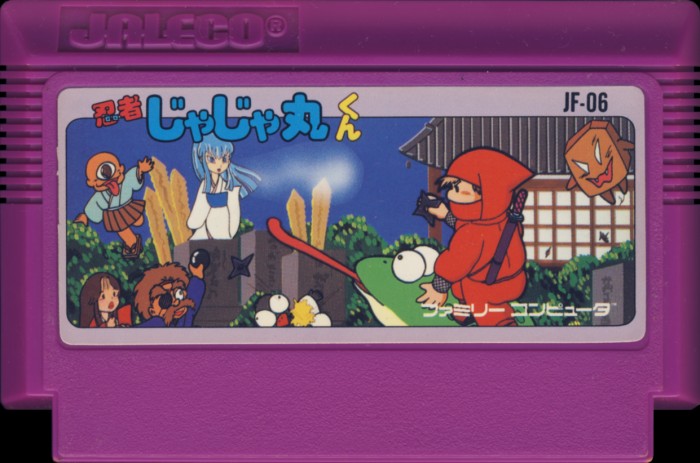

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Purple |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | JF-06 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

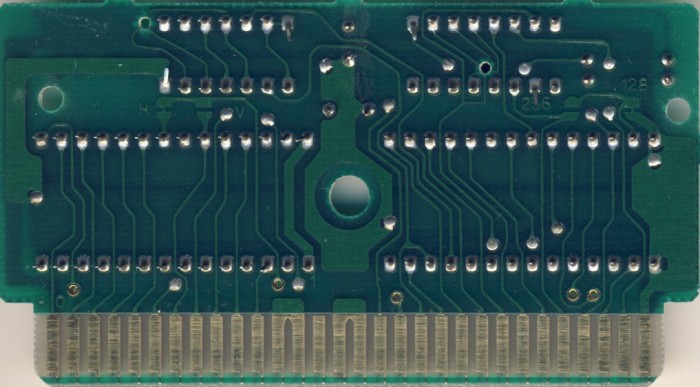

PCB Properties
| Name | JF-06 |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8542 - 8602 (10) |
| Est First Run | October 1985 |
| PCB Class | JALECO-JF-06 |
| iNES Mapper | 87 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | P.プãƒã‚°ãƒ©ãƒ | 16 KB | 767A6A66 | 9 |
| CHR0 | CHR | 16 KB | 35BEA742 | 9 |
| N/A | ROMs Combined | 32 KB | D97595A3 | 9 |

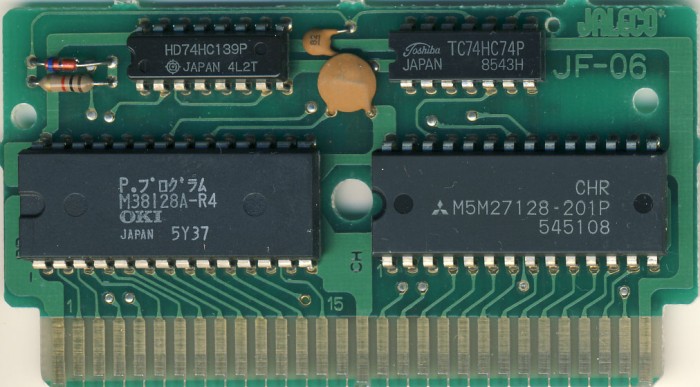

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | OKI | M38128A R4 | Mask ROM 16 KB | DIP-28 | 5Y 37 | 8544 | |
| CH | Mitsubishi | M5M27128 201P | PROM 16 KB | DIP-28 | 545 108 | 8545 | |
| Hitachi | HD74HC139P | 74-139 Series | DIP-16 | 4L2 T | 8446 | ||
| Toshiba | TC74HC74P | 74-74 Series | DIP-14 | 8543 H | 8543 |
