Release Info
| Catalog ID | SUN-ATL-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 17, 1986 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | Famicom Controller |

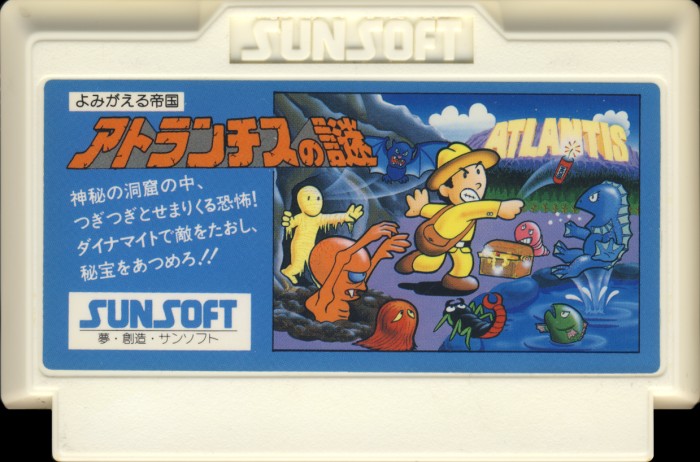

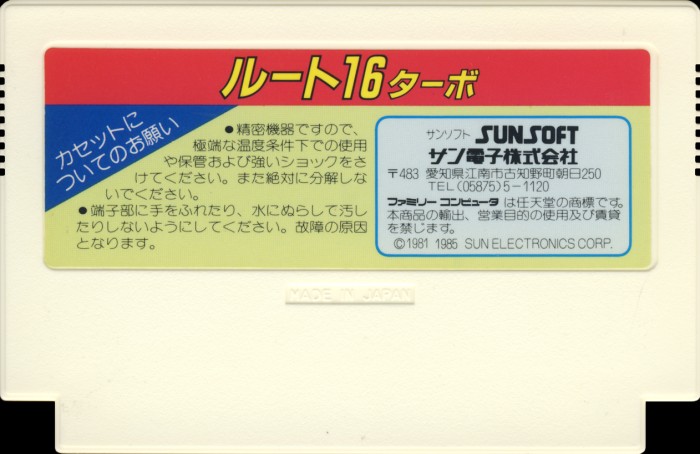

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

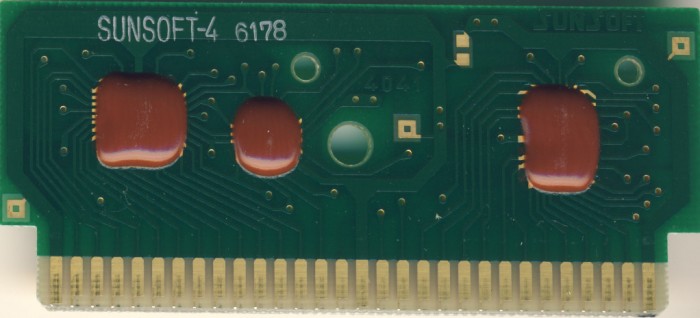

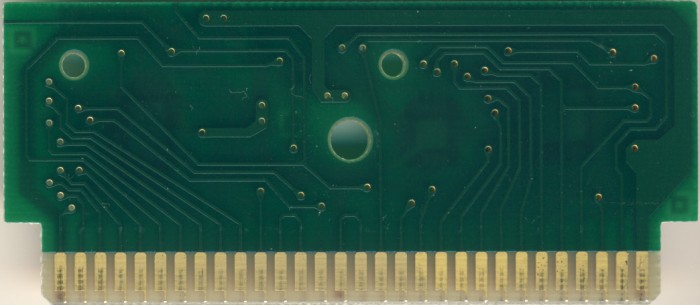

PCB Properties
| Name | 4041 |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Mitsubishi |
| Mfg Range | 8613 - 8617 (2) |
| Est First Run | March 1986 |
| PCB Class | SUNSOFT-1 |
| iNES Mapper | 184 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | Sunsoft-1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 7AF3AFB7 | 2 |
| CHR0 | Not Present | 16 KB | 33D76D26 | 3 |
| N/A | ROMs Combined | 48 KB | F808AF60 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Mitsubishi | SUNSOFT-4 | Chip-on-Board PCB | PCB | 617 8 | 8617 | |
| __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | ||||
| __Unknown | EP128 | Bonded ROM 16 KB | EPOXY | ||||
| __Unknown | EPSS-1 | Sunsoft-1 | EPOXY |
