Release Info
| Catalog ID | PNF-AA (R55V5913) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 26, 1987 |
| Publisher | Pony Canyon |
| Developer | Scitron |
| Players | 1 |
| Peripherals | 3-D Glasses,Famicom Controller |

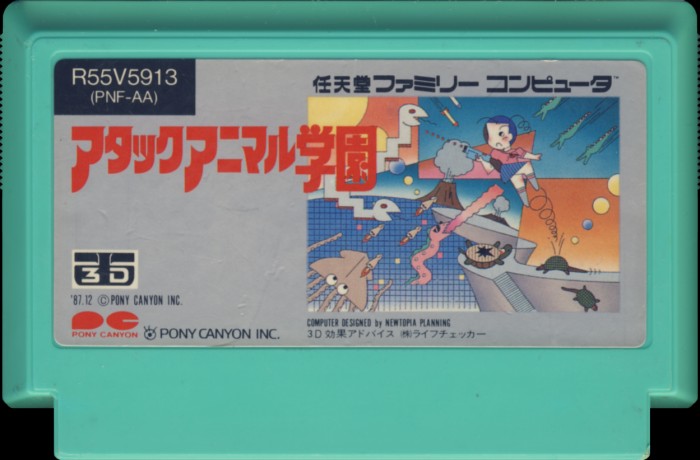

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Spring Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | PNF-AA |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-UNROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8749 |
| Est First Run | December 1987 |
| PCB Class | HVC-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PNF-AA-0 PRG | 128 KB | 7D55CF29 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG-ROM | Sharp | LH2310 9B | Mask ROM 128 KB | DIP-28 | 8749 E | 8749 | |
| CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8746 M5 | 8746 | |
| LS161 | Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8746 CA | 8746 | |
| LS32 | Panasonic | MN74HC32 | 74-32 Series | DIP-14 | 7? | 8748 |
