Release Info
| Catalog ID | AVE-PY |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1990 |
| Publisher | AVE |
| Developer | Sachen / Joy Van |
| Players | 1 |
| Peripherals | NES Controller |

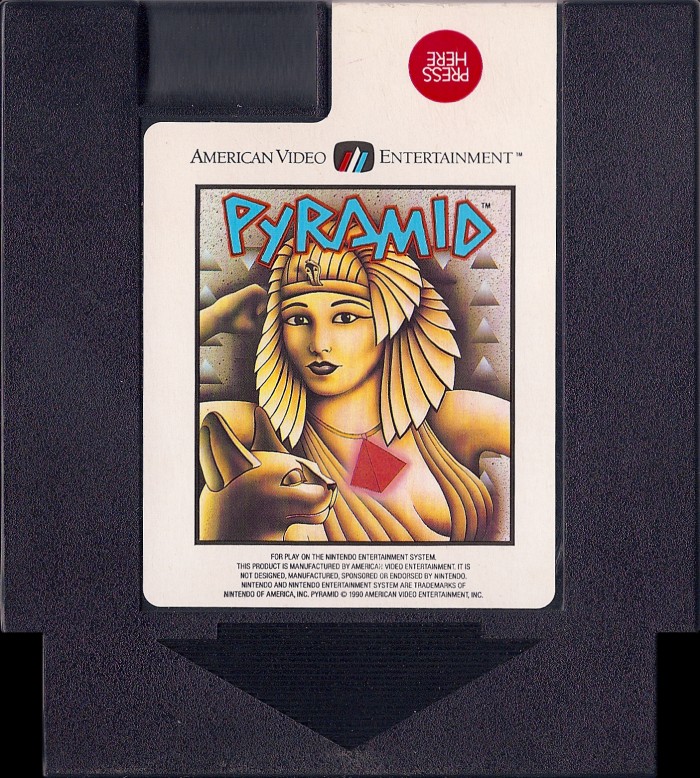

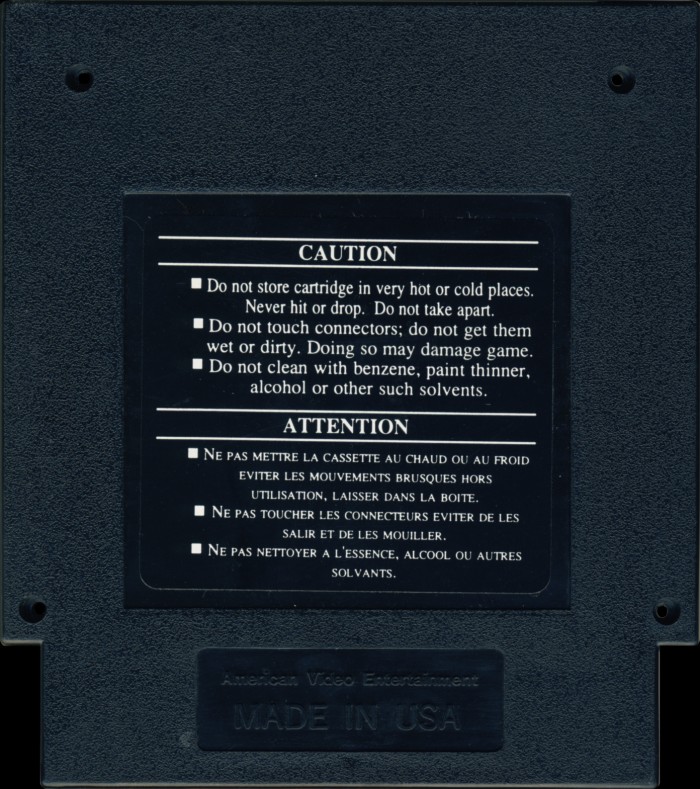

Cart Properties
| Cart Producer | AVE |
|---|---|
| Color | Black |
| Form Factor | Square Corner |
| Embossed Text | American Video Entertainment Made in USA |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

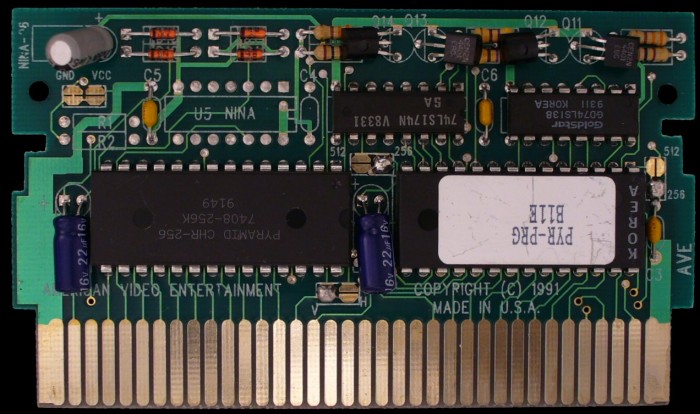

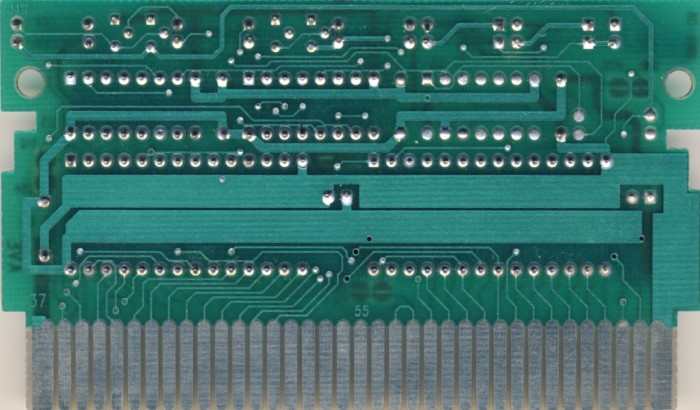

PCB Properties
| Name | NINA-06 |
|---|---|
| PCB Producer | AVE |
| Manufacturer | ACL |
| Mfg Range | 9038 - 9311 (2) |
| Est First Run | September 1990 |
| PCB Class | AVE-NINA-06 |
| iNES Mapper | 79 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx138, 74xx174 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PYR-PRG B11E | 16 KB | BE86EE6D | 2 |
| CHR0 | PYRAMID CHR-256 7408-256K | 8 KB | 8EEF716A | 3 |
| N/A | ROMs Combined | 24 KB | 2472C3EB | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | __Unknown | 23256 | Mask ROM 32 KB | DIP-28 | 9149 | 9149 | |
| U2 | Signetics | 27C256-15 N | PROM 32 KB | DIP-28 | 9144 KL | 9144 | 2314803 |
| U3 | GoldStar | GD74LS138 | 74-138 Series | DIP-16 | 9311 | 9311 | |
| U4 | Signetics | 74LS174N | 74-174 Series | DIP-16 | 8331 V | 8331 |
