Release Info
| Catalog ID | AVE-PY |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1990 |
| Publisher | AVE |
| Developer | Sachen / Joy Van |
| Players | 1 |
| Peripherals | NES Controller |

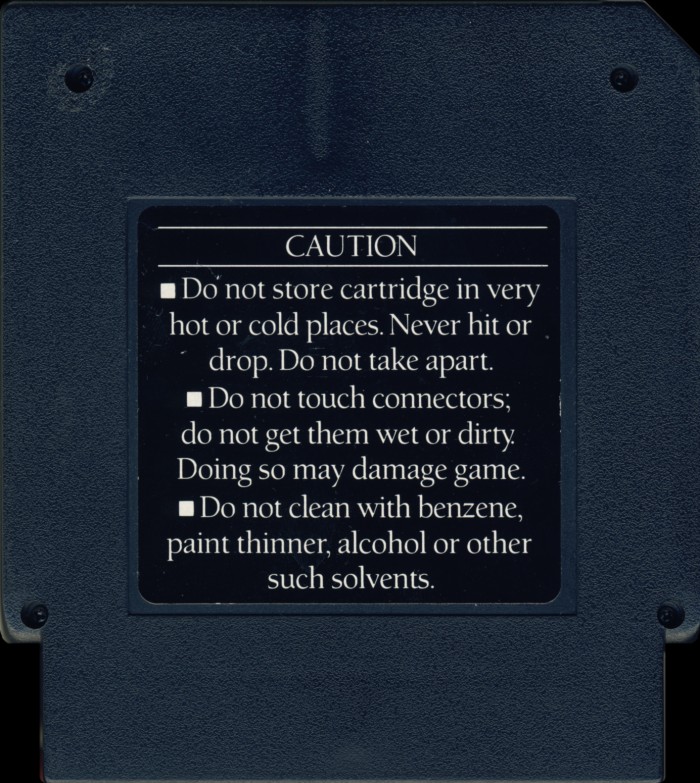

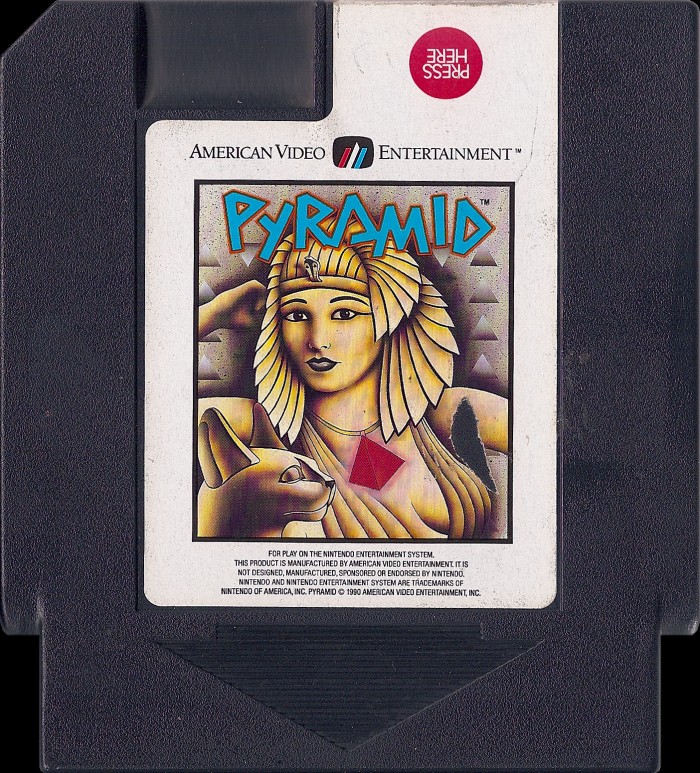

Cart Properties
| Cart Producer | AVE |
|---|---|
| Color | Black |
| Form Factor | Cut Corner |
| Embossed Text | None |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

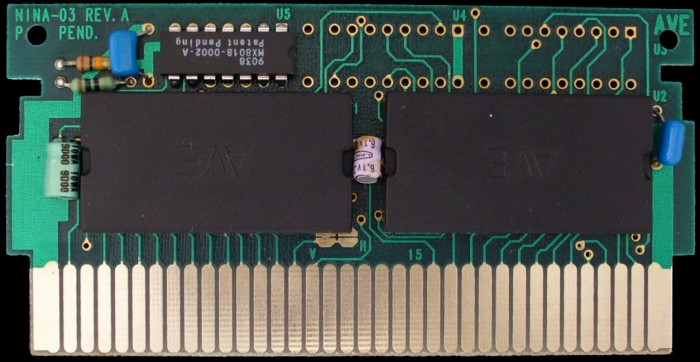

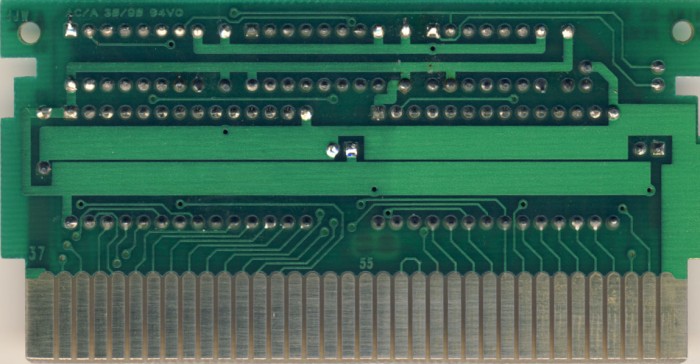

PCB Properties
| Name | NINA-03 REV. A |
|---|---|
| PCB Producer | AVE |
| Manufacturer | ACL |
| Mfg Range | 9038 - 9311 (2) |
| Est First Run | September 1990 |
| PCB Class | AVE-NINA-03 |
| iNES Mapper | 79 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | MX8018 |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | 1FF8DACE | 1 |
| CHR0 | Not Present | 8 KB | 8EEF716A | 3 |
| N/A | ROMs Combined | 24 KB | 2969A5C1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | __Unknown | EP64 | Bonded ROM 8 KB | EPOXY | |||
| U2 | __Unknown | EP128 | Bonded ROM 16 KB | EPOXY | |||
| U5 | Macronix | MX8018-0002-A | AVE CIC | DIP-14 | 9038 | 9038 |
