Release Info
| Catalog ID | KON-RC815 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | July 30, 1986 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | Famicom Controller |

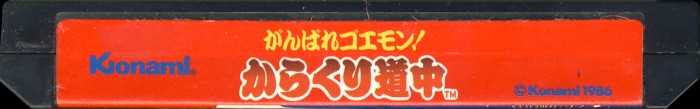

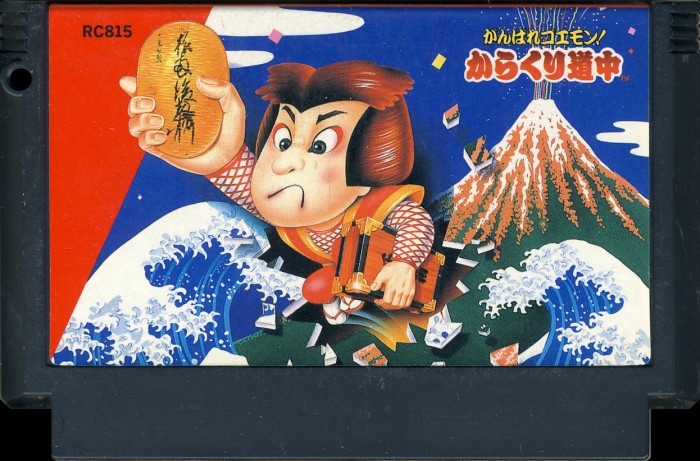

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC815 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

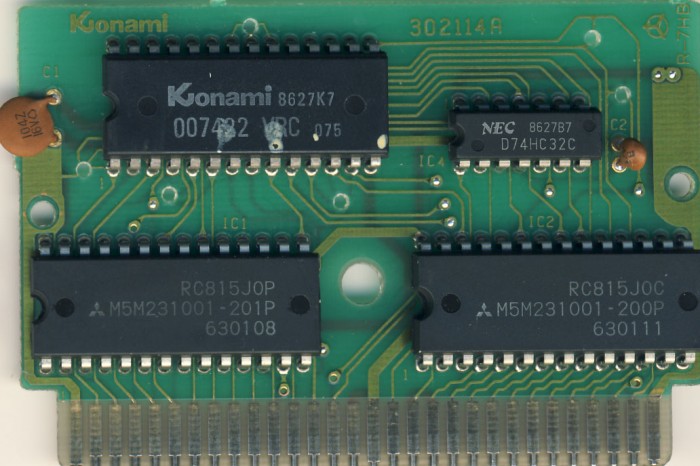

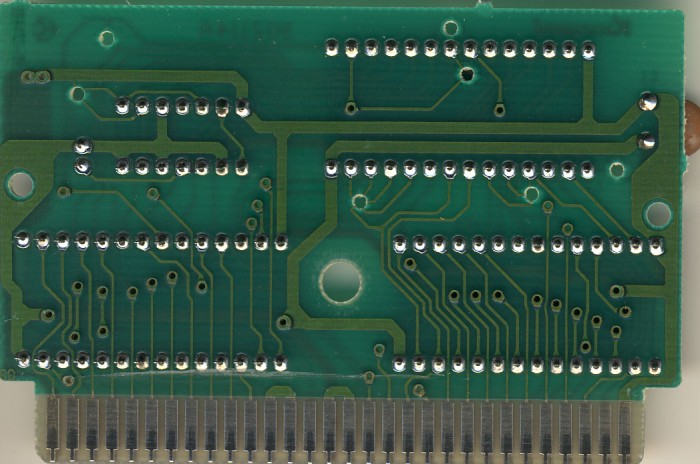

PCB Properties
| Name | 302114A |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8629 - 8630 (2) |
| Est First Run | July 1986 |
| PCB Class | KONAMI-VRC-1 |
| iNES Mapper | 75 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx32, VRC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC815J0P | 128 KB | 565A57E5 | 2 |
| CHR0 | RC815J0C | 128 KB | D9842835 | 2 |
| N/A | ROMs Combined | 256 KB | 4FC2F673 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Mitsubishi | M5M231001 201P | Mask ROM 128 KB | DIP-28 | 630 108 | 8630 | |
| IC2 | Mitsubishi | M5M231001 200P | Mask ROM 128 KB | DIP-28 | 630 111 | 8630 | |
| IC3 | NEC | 007422 VRC 075 | Konami VRC | DIP-28 | 8627 K7 | 8627 | |
| IC4 | NEC | D74HC32C | 74-32 Series | DIP-14 | 8627 B7 | 8627 |
