Release Info
| Catalog ID | KON-RC834 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | February 28, 1989 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC834 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

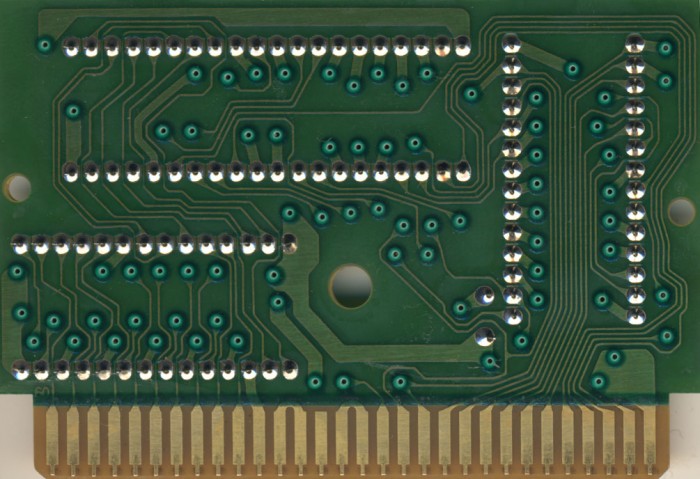

PCB Properties
| Name | 351618 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8905 - 8908 (4) |
| Est First Run | February 1989 |
| PCB Class | KONAMI-VRC-2 |
| iNES Mapper | 22 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | VRC2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC834J0P | 128 KB | 953CA1B6 | 4 |
| CHR0 | RC834J0C | 128 KB | 89A44100 | 4 |
| N/A | ROMs Combined | 256 KB | 90F6FA33 | 4 |

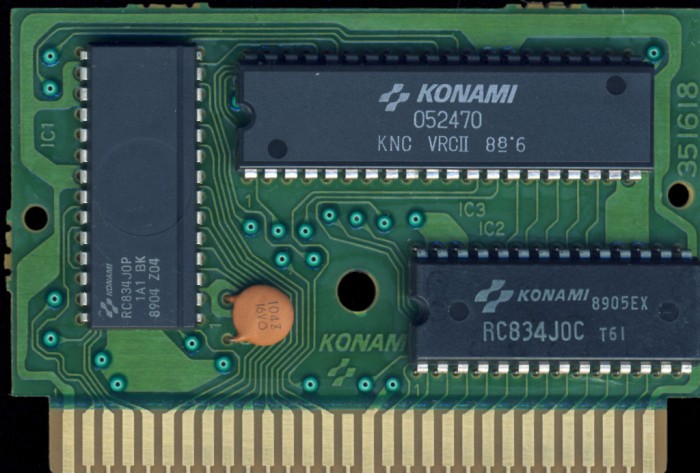

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8904 Z04 | 8904 | |
| IC2 | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8905 EX | 8905 | |
| IC3 | Panasonic | 052470 VRC II KNC | Konami VRC II | DIP-40 | 8 | 8826 |
