Release Info
| Catalog ID | NES-GL-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | 1988 |
| Publisher | Tengen |
| Developer | Tengen |
| Players | 2 |
| Peripherals | NES Controller |

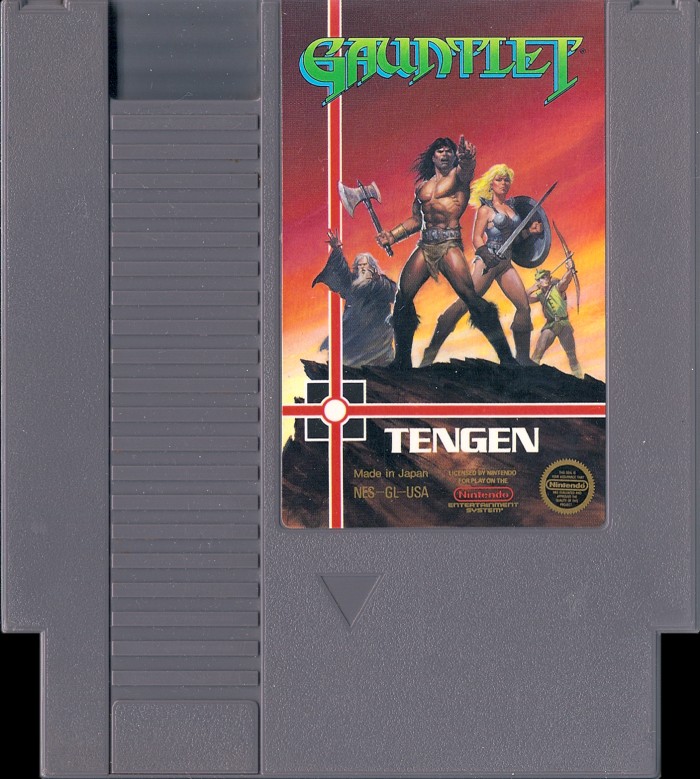

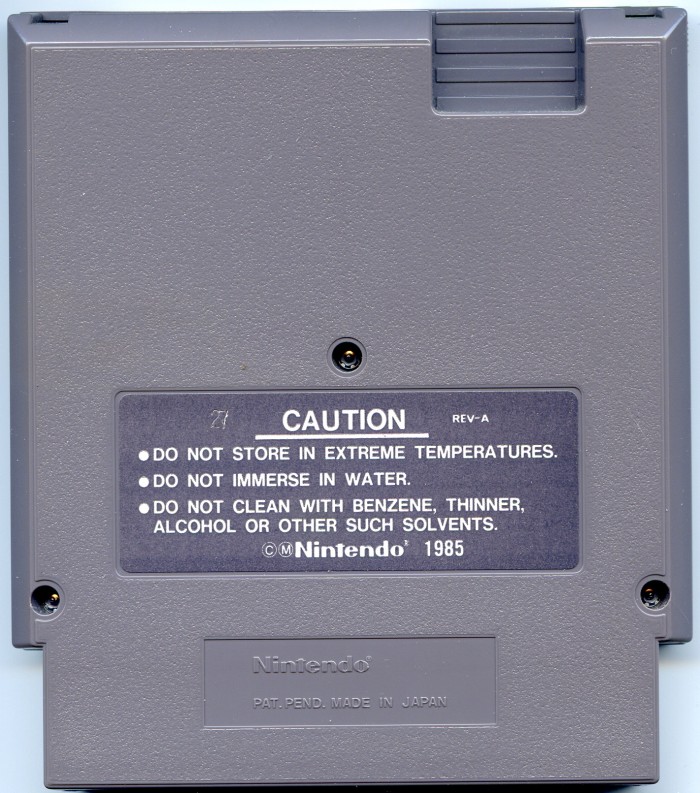

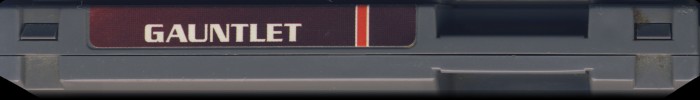

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-GL-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 11 |

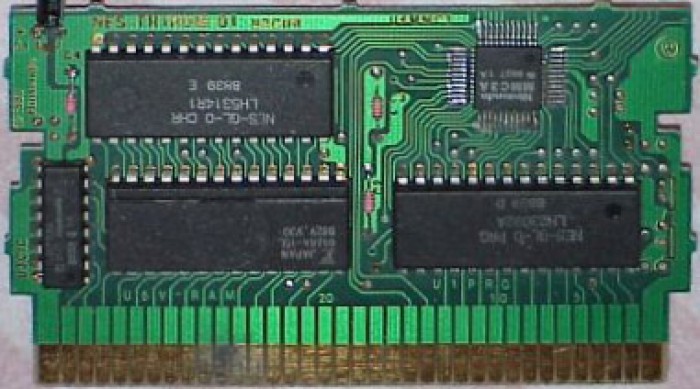

PCB Properties
| Name | NES-TR1ROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8826 - 8839 (2) |
| Est First Run | June 1988 |
| PCB Class | NES-TR1ROM |
| iNES Mapper | 4 |
| Mirroring | Four Screen |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 2 KB |
| CIC Type | 6113A |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-GL-0 PRG | 128 KB | 834D1924 | 3 |
| CHR0 | NES-GL-0 CHR | 64 KB | 26D819A2 | 3 |
| N/A | ROMs Combined | 192 KB | EC968C51 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2309 2A | Mask ROM 128 KB | DIP-28 | 8838 D | 8838 | |
| U2 CHR | Sharp | LH5314 R1 | Mask ROM 64 KB | DIP-28 | 8839 E | 8839 | |
| U3 CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | |||
| U4 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | |||
| U5 V-RAM | Fujitsu | 8464A-15L | SRAM 8 KB | DIP-28 |
