Release Info
| Catalog ID | NES-UM-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | February 12, 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

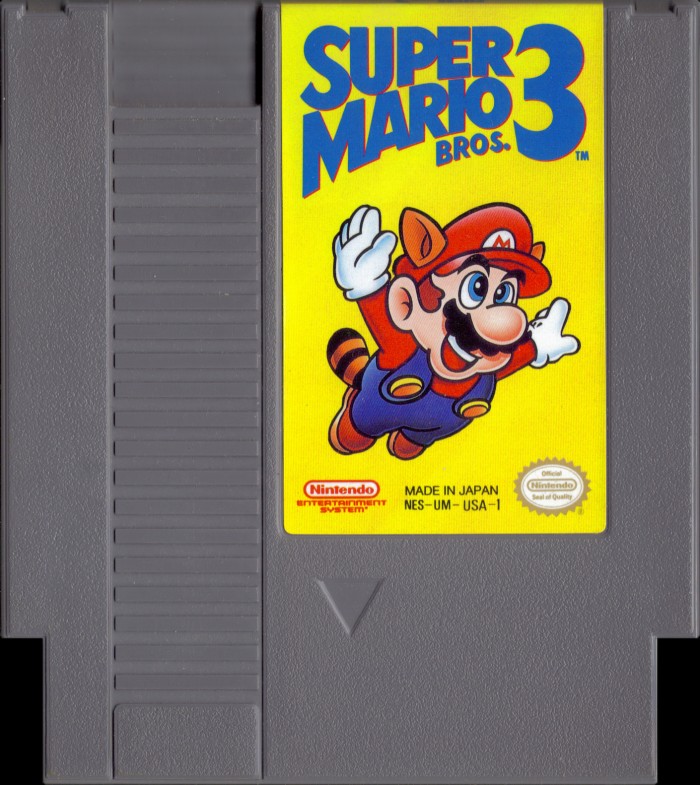

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-UM-USA-1 |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 01 |
PCB Properties
| Name | NES-TSROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9007 - 9041 (7) |
| Est First Run | February 1990 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-UM-1 PRG | 256 KB | A0ED7D20 | 10 |
| CHR0 | NES-UM-0 CHR | 128 KB | C2928C49 | 14 |
| N/A | ROMs Combined | 384 KB | 2E6301ED | 10 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013C T56 | Mask ROM 256 KB | DIP-32 | 9038 PY203 | 9038 | |
| U2 CHR | Toshiba | TC531003CP J507 | Mask ROM 128 KB | DIP-32 | 9035 EAI | 9035 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9041 3 CB | 9041 | |
| U4 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9041 KP048 | 9041 | |
| U5 W-RAM | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 041 N | 9041 |
