Release Info
| Catalog ID | NES-UM-SCN |
|---|---|
| Region | Scandinavia (PAL-B) |
| Class | Licensed |
| Release Date | August 29, 1991 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

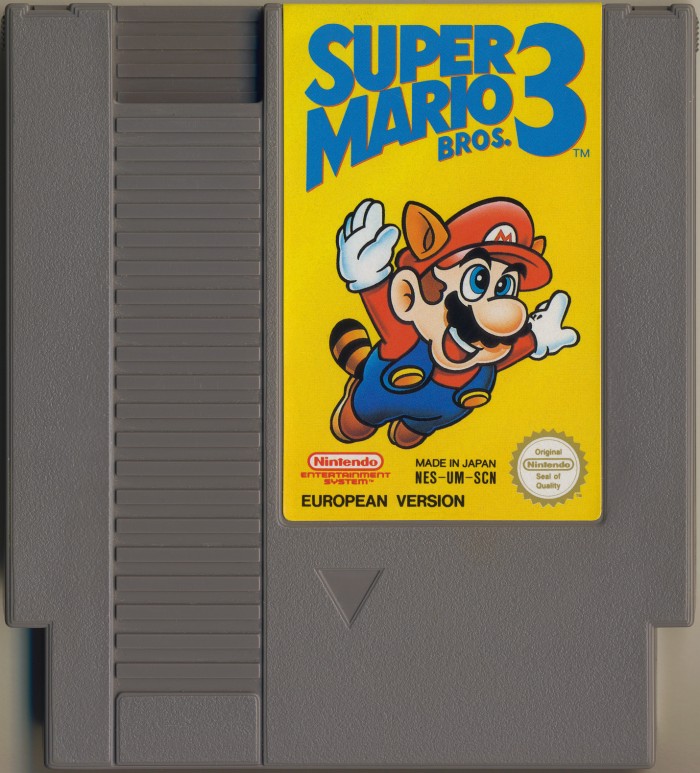

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-UM-SCN |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 09 |
PCB Properties
| Name | NES-TSROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9126 - 9202 (7) |
| Est First Run | June 1991 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-UM-0 PRG | 256 KB | 80CD1919 | 11 |
| CHR0 | PAL-UM-0 CHR | 128 KB | 7970A157 | 11 |
| N/A | ROMs Combined | 384 KB | 1ED5C801 | 11 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP232048E 0063 | Mask ROM 256 KB | DIP-32 | 2AB 7T | 9201 | |
| U2 CHR | Ricoh | RP231039D 0131 | Mask ROM 128 KB | DIP-32 | 2AC 4F | 9202 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9146 C | 9146 | |
| U4 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9151 EP043 | 9151 | |
| U5 W-RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9151 KT04 | 9151 |
