Release Info
| Catalog ID | NES-GK-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | February 1988 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | NES Controller |

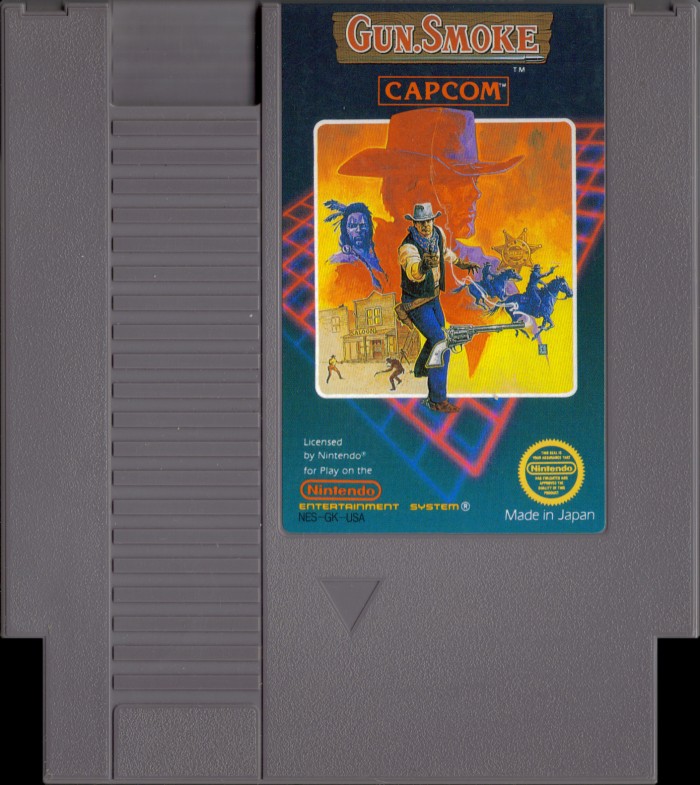

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-GK-USA[-1] |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 19 |
PCB Properties
| Name | NES-UN-ROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8806 - 8846 (3) |
| Est First Run | February 1988 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-GK-0 PRG | 128 KB | A8784932 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8844 KX | 8844 | |
| CHR RAM | Toshiba | TC5563APL-12L | SRAM 8 KB | SDIP-28 | 8846 HCK | 8846 | |
| CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8846 3 AA | 8846 | |
| LS161N | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 834 J | 8834 | |
| LS32 | Hitachi | HD74HC32P | 74-32 Series | DIP-14 | 8K1 T | 8840 |
