Release Info
| Catalog ID | NES-GK-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | February 23, 1989 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | NES Controller |

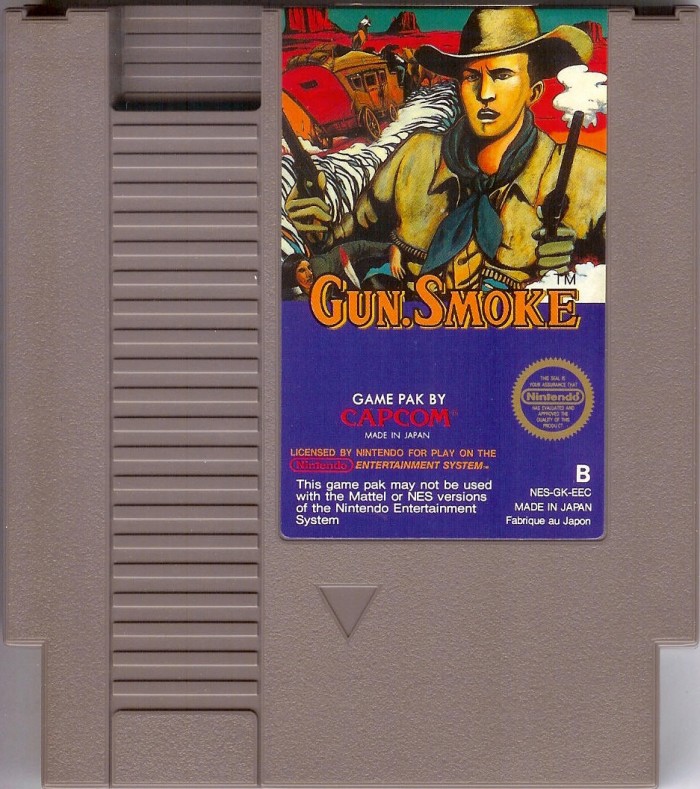

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-GK-EEC |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-UN-ROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8853 - 8908 (2) |
| Est First Run | January 1989 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-GK-0 PRG | 128 KB | B79C320D | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Ricoh | RP231026D 5314 | Mask ROM 128 KB | DIP-28 | 9B3 A1 | 8908 | |
| CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8905 MX | 8905 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8847 A | 8847 | |
| LS161N | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | H29 | 8829 | |
| LS32 | GoldStar | GD74HC32 | 74-32 Series | DIP-14 | H13 | 8813 |
