Release Info
| Catalog ID | NES-EM-SCN |
|---|---|
| Region | Scandinavia (PAL-B) |
| Class | Licensed |
| Release Date | March 26, 1992 |
| Publisher | Nintendo |
| Developer | The Software Toolworks |
| Players | 2 |
| Peripherals | NES Controller |

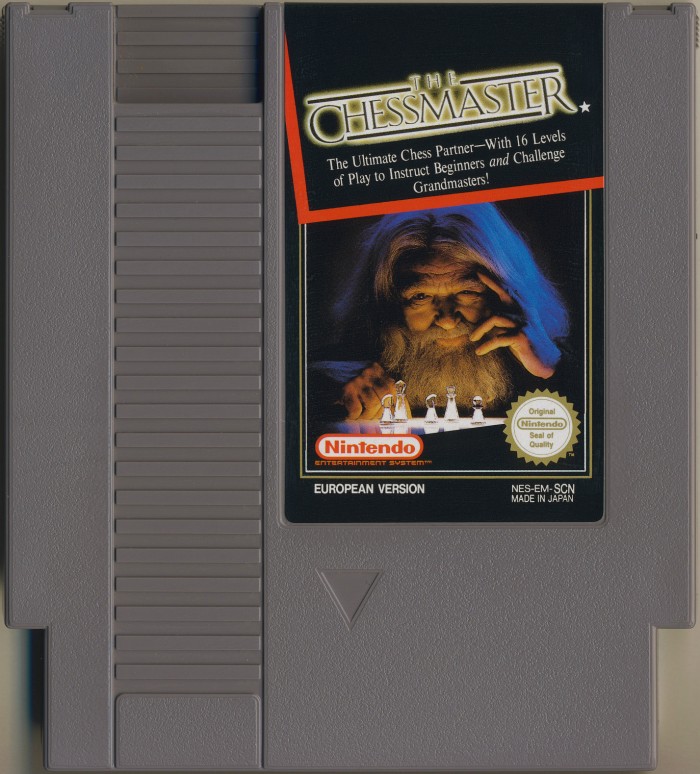

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-EM-SCN |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 20 |

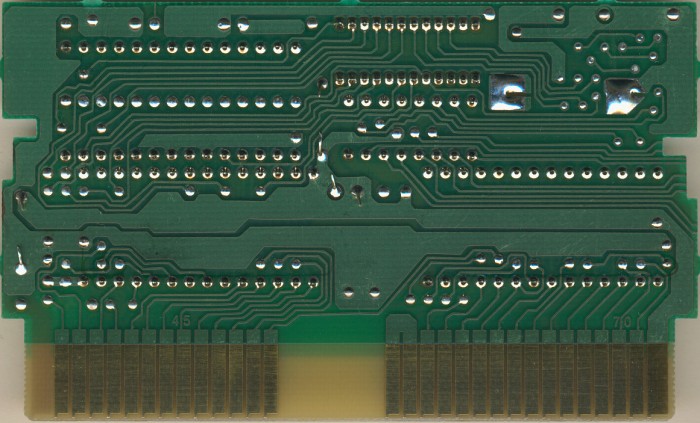

PCB Properties
| Name | NES-SJROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9148 - 9148 (2) |
| Est First Run | December 1991 |
| PCB Class | NES-SJROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-EM-0 PRG | 128 KB | 64C97986 | 6 |
| CHR0 | PAL-EM-0 CHR | 32 KB | 4C622266 | 6 |
| N/A | ROMs Combined | 160 KB | E3027EBE | 6 |

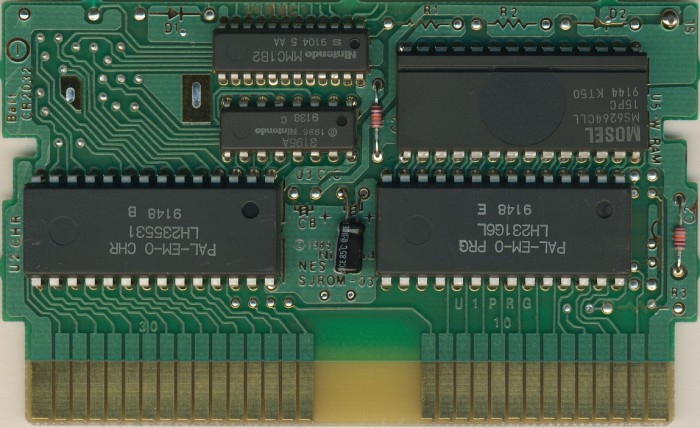

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 6L | Mask ROM 128 KB | DIP-28 | 9148 E | 9148 | |
| U2 CHR | Sharp | LH2355 31 | Mask ROM 32 KB | DIP-28 | 9148 B | 9148 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9138 C | 9138 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9104 5 AA | 9104 | |
| U5 W-RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9144 KT50 | 9144 |
