Release Info
| Catalog ID | NES-EM-FRG |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | December 6, 1991 |
| Publisher | Nintendo |
| Developer | The Software Toolworks |
| Players | 2 |
| Peripherals | NES Controller |

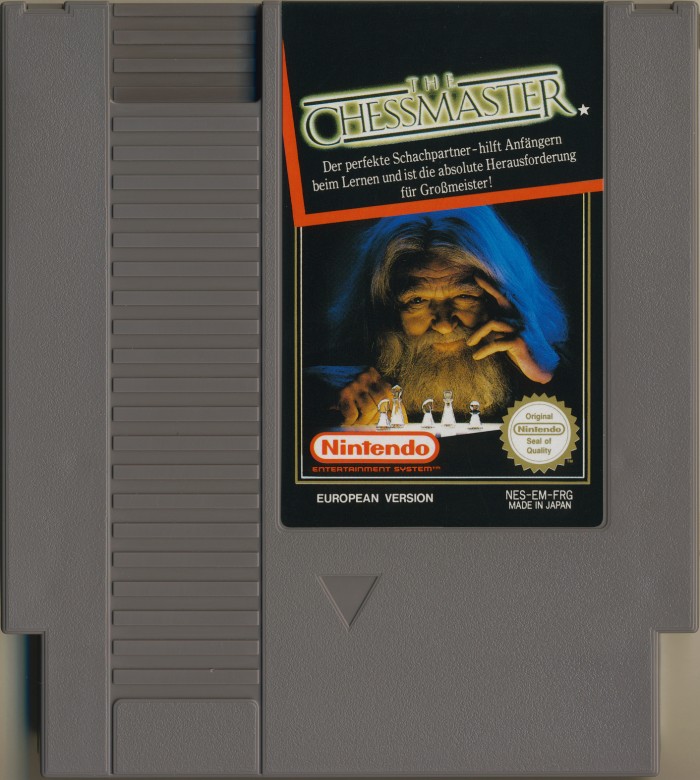

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-EM-FRG |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

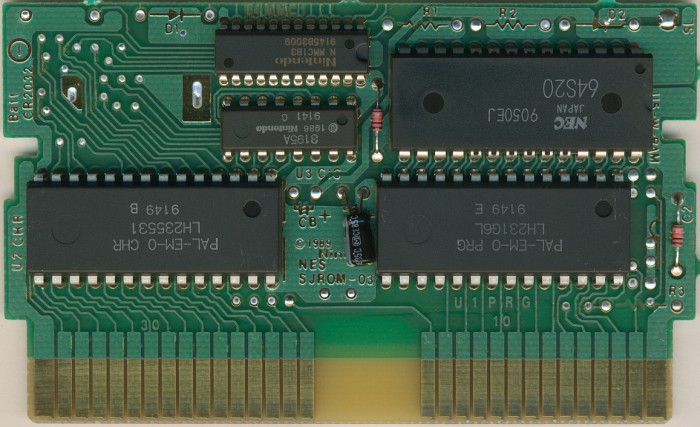

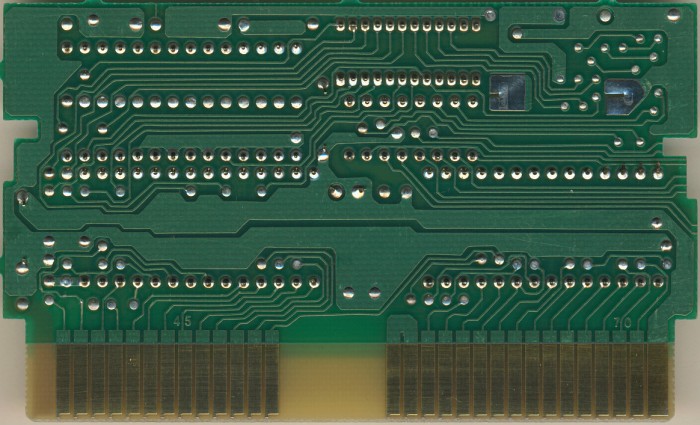

PCB Properties
| Name | NES-SJROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9149 - 9152 (2) |
| Est First Run | December 1991 |
| PCB Class | NES-SJROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-EM-0 PRG | 128 KB | 64C97986 | 6 |
| CHR0 | PAL-EM-0 CHR | 32 KB | 4C622266 | 6 |
| N/A | ROMs Combined | 160 KB | E3027EBE | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 6L | Mask ROM 128 KB | DIP-28 | 9149 E | 9149 | |
| U2 CHR | Sharp | LH2355 31 | Mask ROM 32 KB | DIP-28 | 9149 B | 9149 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9141 C | 9141 | |
| U4 MMC1 | NEC | MMC1B3 | Nintendo MMC1 | DIP-24 | 9145 B3009 | 9145 | |
| U5 W-RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9050 EJ | 9050 |
