Release Info
| Catalog ID | NES-3S-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1989 |
| Publisher | Kemco |
| Developer | Icom Simulations |
| Players | 1 |
| Peripherals | NES Controller |

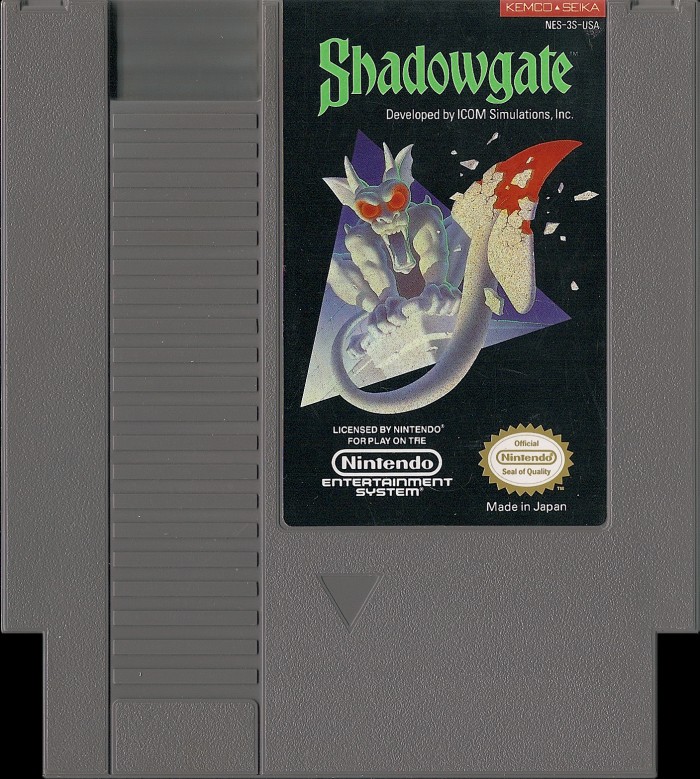

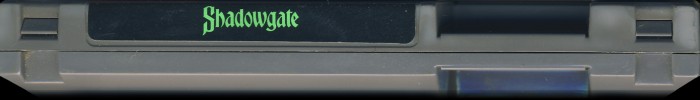

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-3S-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 05 |

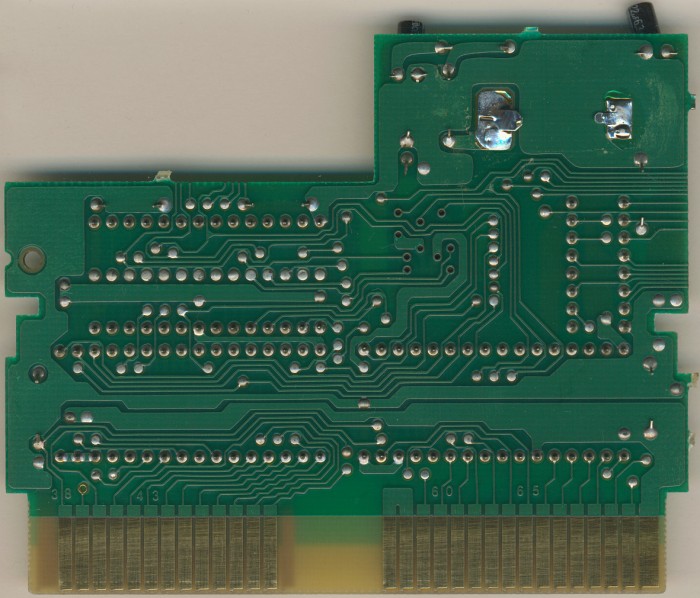

PCB Properties
| Name | NES-TKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8952 - 9002 (2) |
| Est First Run | December 1989 |
| PCB Class | NES-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-3S-0 PRG | 128 KB | 591364C9 | 4 |
| CHR0 | NES-3S-0 CHR | 128 KB | 05414DD9 | 5 |
| N/A | ROMs Combined | 256 KB | 6A1F628A | 4 |

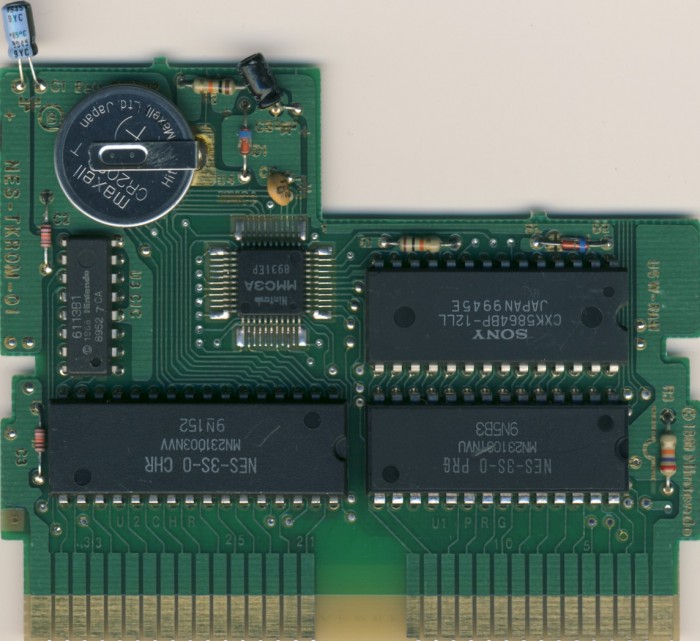

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NVU | Mask ROM 128 KB | DIP-28 | 9N5 B3 | 8946 | |
| U2 CHR | Panasonic | MN231003 NVV | Mask ROM 128 KB | DIP-32 | 9 52 | 8947 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8952 7 CA | 8952 | |
| U4 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8931 EP | 8931 | |
| U5 W-RAM | Sony | CXK5864BP-12LL | SRAM 8 KB | DIP-28 | 99 45E | 8935 |
