Release Info
| Catalog ID | NES-3S-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | July 11, 1991 |
| Publisher | Kemco |
| Developer | Icom Simulations |
| Players | 1 |
| Peripherals | NES Controller |

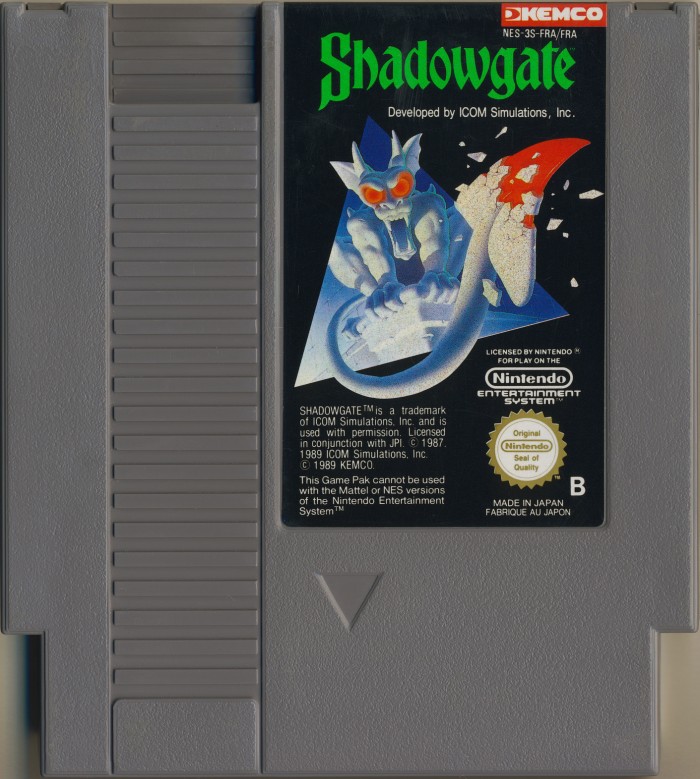

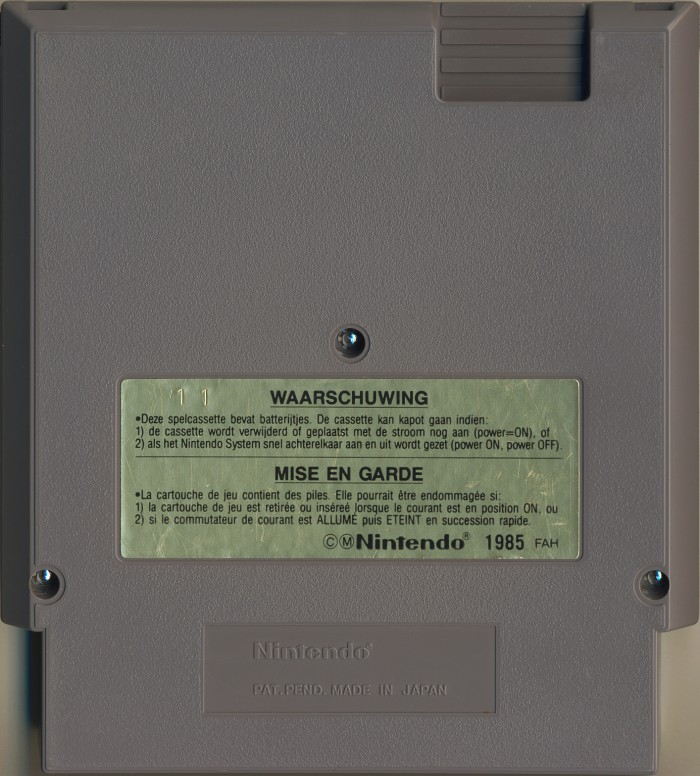

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-3S-FRA/FRA |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

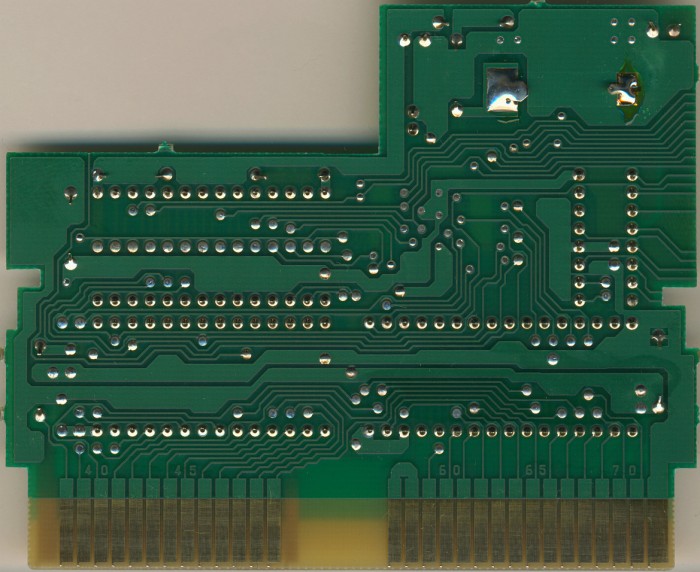

PCB Properties
| Name | NES-TKROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9128 |
| Est First Run | July 1991 |
| PCB Class | NES-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | FRA-3S-0 PRG | 128 KB | 8ADE1526 | 1 |
| CHR0 | FRA-3S-0 CHR | 128 KB | 74A0D738 | 1 |
| N/A | ROMs Combined | 256 KB | 9F01687D | 1 |

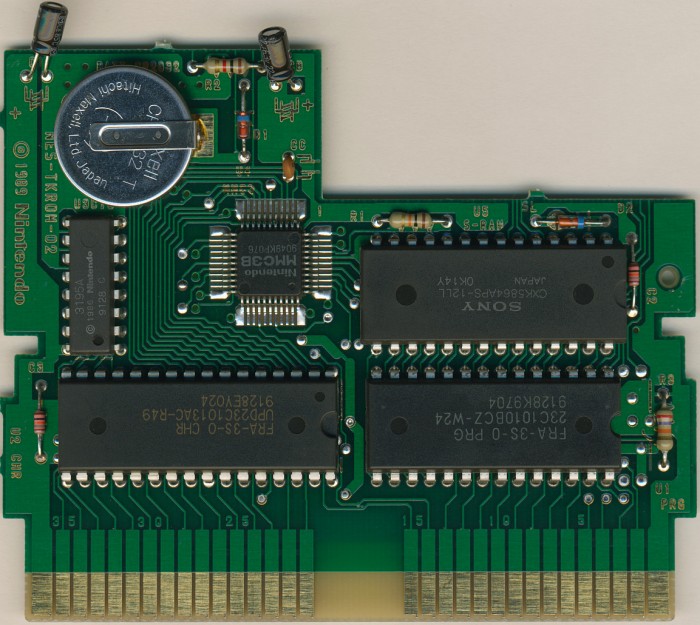

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | 23C1010BCZ W24 | Mask ROM 128 KB | DIP-28 | 9128 K9704 | 9128 | |
| U2 CHR | NEC | UPD23C1013AC R49 | Mask ROM 128 KB | DIP-32 | 9128 EY024 | 9128 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9128 C | 9128 | |
| U4 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9049 KP076 | 9049 | |
| U5 S-RAM | Sony | CXK5864APS-12LL | SRAM 8 KB | DIP-28 | 0K 14Y | 9044 |
