Release Info
| Catalog ID | KYG-AX |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 24, 1988 |
| Publisher | Kyugo Boueki |
| Developer | Shimada Kikaku |
| Players | 1 |
| Peripherals | Famicom Controller |

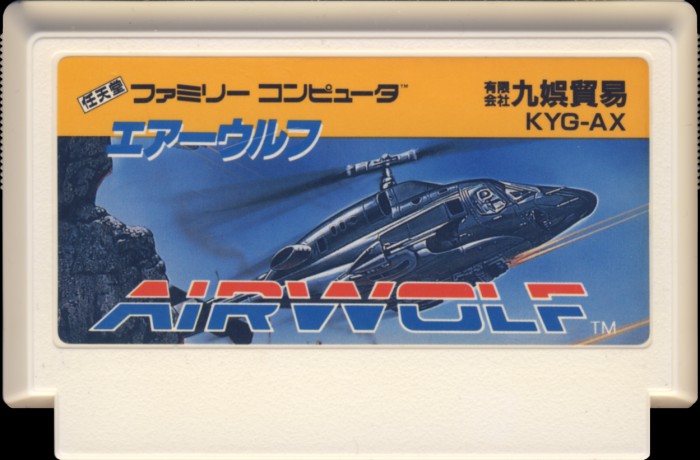

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KYG-AX |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |
PCB Properties
| Name | HVC-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8850 |
| Est First Run | December 1988 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KYG-AX-0 PRG | 128 KB | 5CB41FED | 1 |
| CHR0 | KYG-AX-0 CHR | 128 KB | 69CE0950 | 1 |
| N/A | ROMs Combined | 256 KB | FB8A9B80 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231024D 1801 | Mask ROM 128 KB | DIP-28 | 8M2 A6 | 8850 | |
| U2 CHR | Sharp | LH2311 2D | Mask ROM 128 KB | DIP-32 | 8849 D | 8849 | |
| U3 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8849 1 A | 8849 |
