Release Info
| Catalog ID | NES-AF-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | October 11, 1991 |
| Publisher | Acclaim |
| Developer | Imagineering |
| Players | 1 |
| Peripherals | NES Controller |

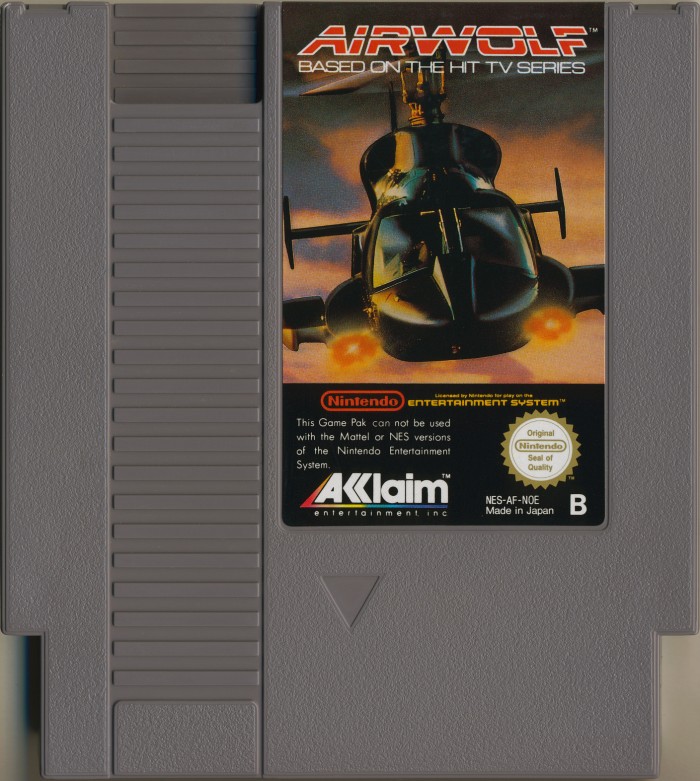

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-AF-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 21 |

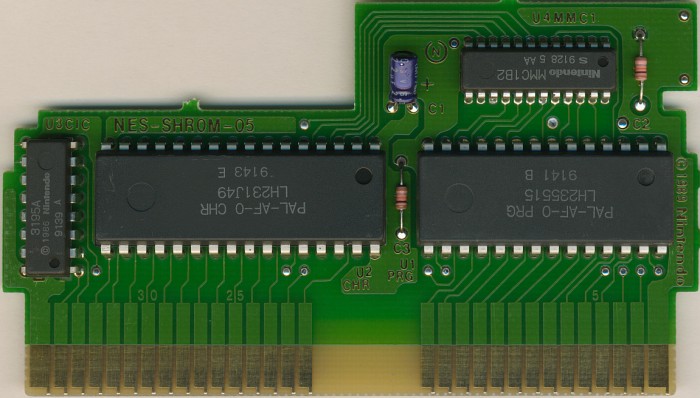

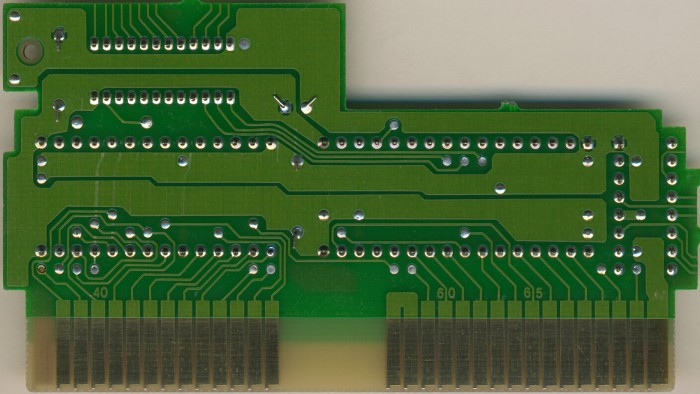

PCB Properties
| Name | NES-SHROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9143 |
| Est First Run | October 1991 |
| PCB Class | NES-SHROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-AF-0 PRG | 32 KB | F71A9931 | 4 |
| CHR0 | PAL-AF-0 CHR | 128 KB | 7EAF3BB1 | 4 |
| N/A | ROMs Combined | 160 KB | 4D345422 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2355 15 | Mask ROM 32 KB | DIP-28 | 9141 B | 9141 | |
| U2 CHR | Sharp | LH231J 49 | Mask ROM 128 KB | DIP-32 | 9143 E | 9143 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9139 A | 9139 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9128 5 AA | 9128 |
