Release Info
| Catalog ID | HVC-PN |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 2, 1984 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

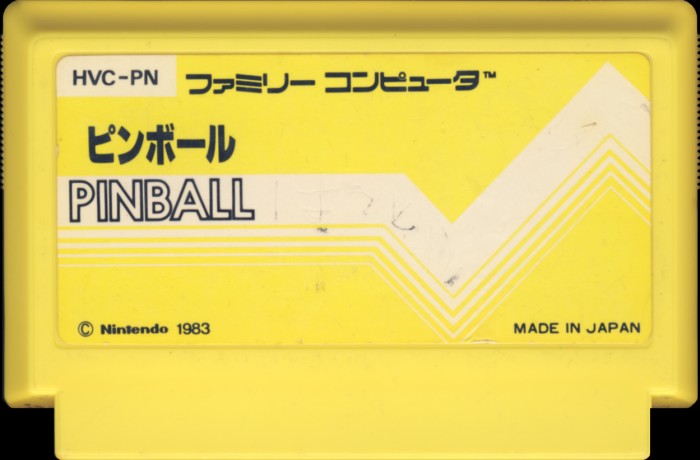

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Bright Yellow |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-PN |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

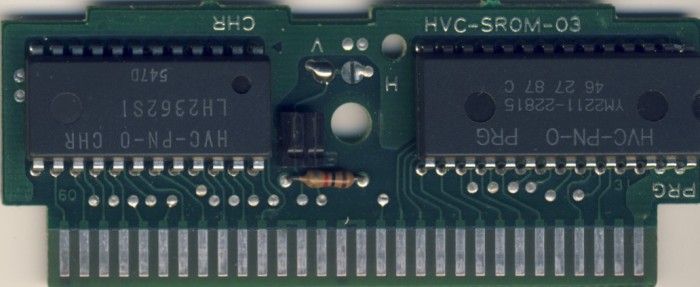

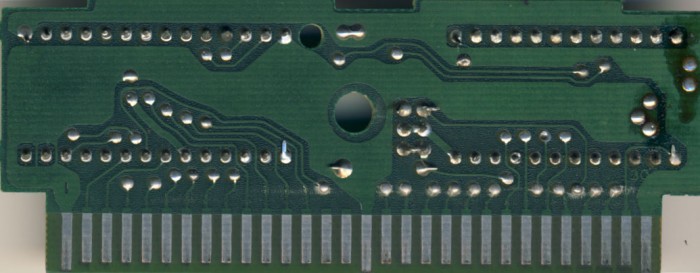

PCB Properties
| Name | HVC-SROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8406 - 8430 (4) |
| Est First Run | February 1984 |
| PCB Class | HVC-SROM |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-PN-0 PRG | 16 KB | 91D33E3C | 12 |
| CHR0 | HVC-PN-0 CHR | 8 KB | F2A53B3D | 18 |
| N/A | ROMs Combined | 24 KB | 035DC2E9 | 12 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Yamaha | YM2211 22815 | Mask ROM 16 KB | DIP-28 | 46 27 87 C | 8426 | |
| CHR | Sharp | LH2362 S1 | Mask ROM 8 KB | DIP-24 | 47D 5 | 8430 |
