Release Info
| Catalog ID | NES-7R-FRG |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | September 27, 1992 |
| Publisher | Mindscape |
| Developer | Sculptured Software |
| Players | 1 |
| Peripherals | NES Controller |

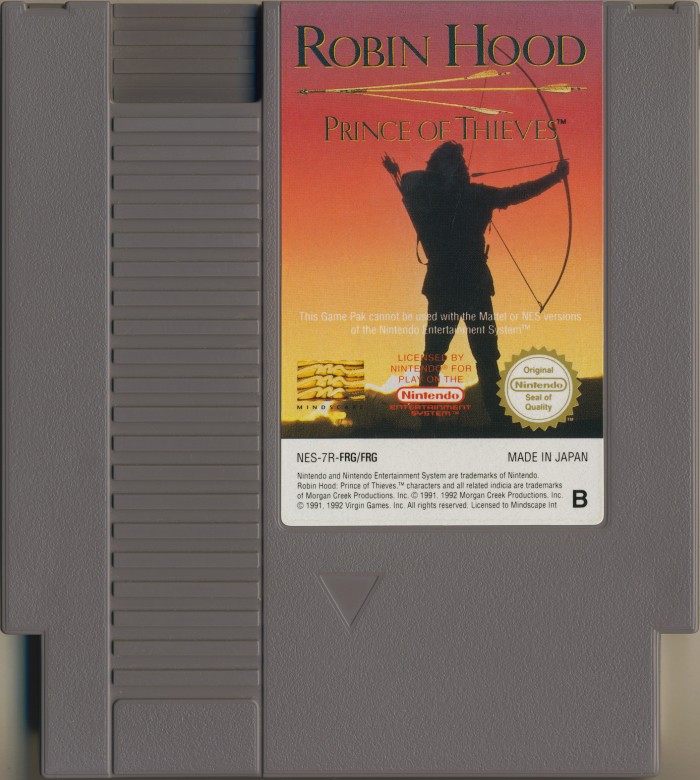

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-7R-FRG/FRG |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 08 |
PCB Properties
| Name | NES-SGROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9239 |
| Est First Run | September 1992 |
| PCB Class | NES-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | FRG-7R-0 PRG | 256 KB | D49DCA84 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 4B | Mask ROM 256 KB | DIP-32 | 9239 D | 9239 | |
| U2 CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9231 EJ | 9231 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9237 A | 9237 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9239 1 A 170 | 9239 |
