Release Info
| Catalog ID | NES-7R-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1991 |
| Publisher | Virgin Games |
| Developer | Sculptured Software |
| Players | 1 |
| Peripherals | NES Controller |

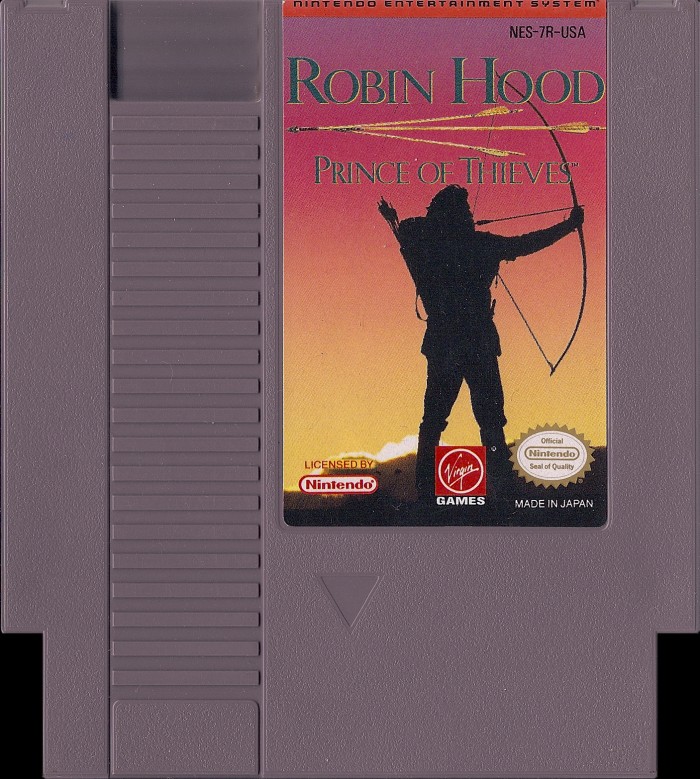

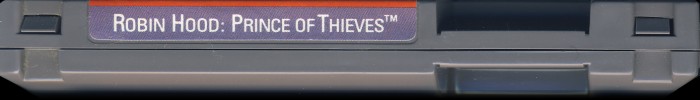

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-7R-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 21 |
PCB Properties
| Name | NES-SGROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9142 - 9204 (2) |
| Est First Run | October 1991 |
| PCB Class | NES-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-7R-0 PRG | 256 KB | 86B0D1CF | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH532J 36 | Mask ROM 256 KB | DIP-32 | 9142 D | 9142 | |
| U2 CHR RAM | MOSEL | MS6264BL-15PC | SRAM 8 KB | DIP-28 | 9137 KT24 | 9137 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9117 5 AA | 9117 | |
| U4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9049 3 BB | 9049 |
