Release Info
| Catalog ID | NES-BH-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | September 13, 1993 |
| Publisher | Mindscape |
| Developer | Mindscape |
| Players | 1 |
| Peripherals | NES Controller |

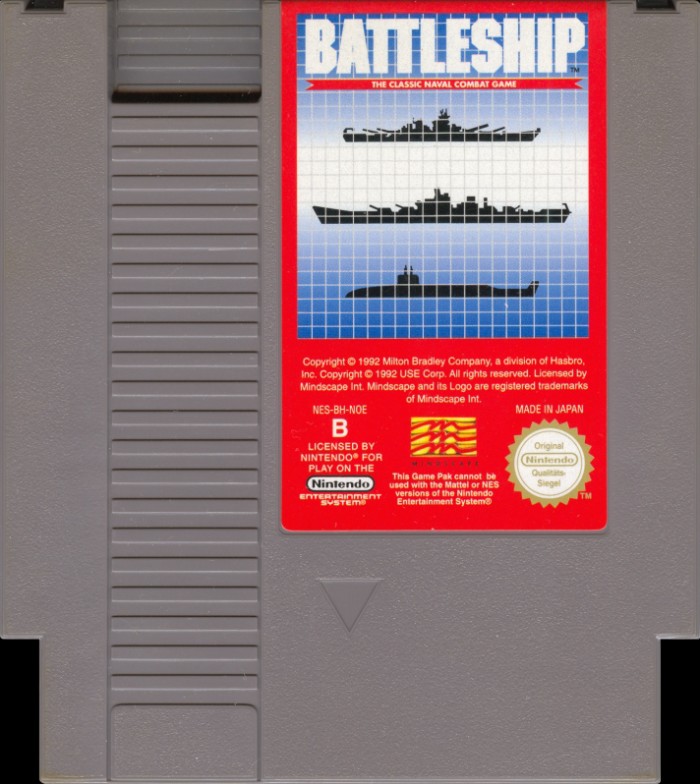

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-BH-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

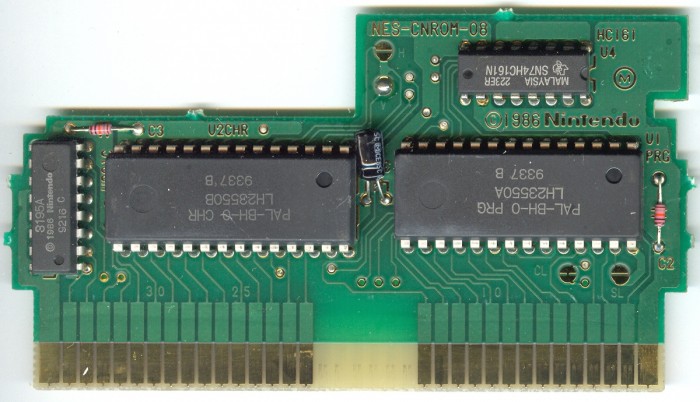

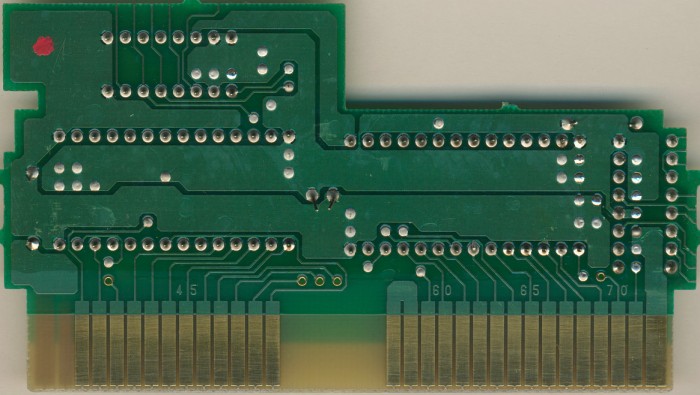

PCB Properties
| Name | NES-CNROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9337 |
| Est First Run | September 1993 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-BH-0 PRG | 32 KB | 0C946A76 | 1 |
| CHR0 | PAL-BH-0 CHR | 32 KB | 02EF4F2A | 1 |
| N/A | ROMs Combined | 64 KB | FC5026EE | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2355 0A | Mask ROM 32 KB | DIP-28 | 9337 B | 9337 | |
| U2 CHR | Sharp | LH2355 0B | Mask ROM 32 KB | DIP-28 | 9337 B | 9337 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9216 C | 9216 | |
| U4 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 223 ER | 9223 |
