Release Info
| Catalog ID | NES-8T-SCN |
|---|---|
| Region | Scandinavia (PAL-B) |
| Class | Licensed |
| Release Date | February 18, 1993 |
| Publisher | Tradewest |
| Developer | Rare |
| Players | 2 |
| Peripherals | NES Controller |

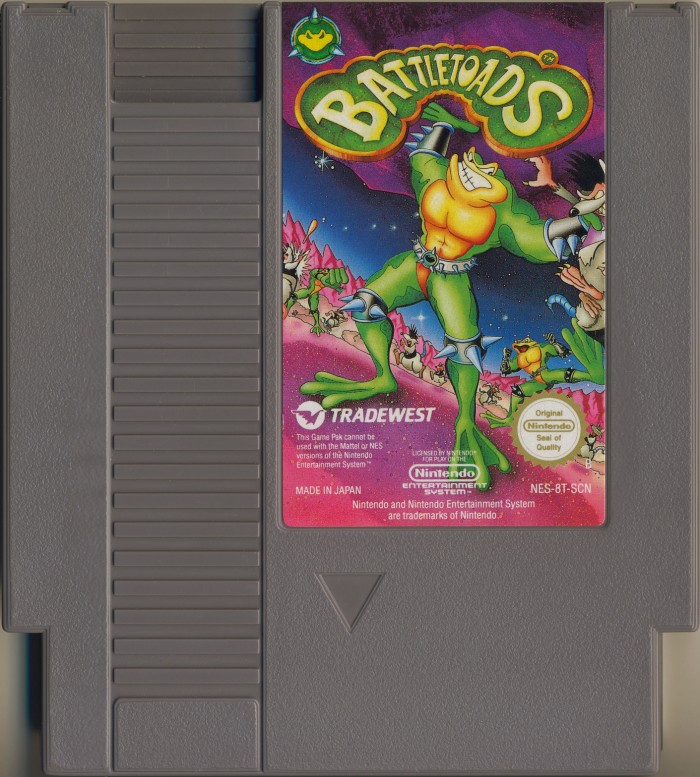

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-8T-SCN |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 01 |
PCB Properties
| Name | NES-AOROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9242 - 9242 (3) |
| Est First Run | October 1992 |
| PCB Class | NES-AOROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-8T-0 PRG | 256 KB | 524A5A32 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013ACZ W46 | Mask ROM 256 KB | DIP-32 | 9242 XY005 | 9242 | |
| U2 CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9235 EJ | 9235 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9236 A | 9236 | |
| U4 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 221 ER | 9221 |
