Release Info
| Catalog ID | NES-HN-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | April 3, 1992 |
| Publisher | Acclaim |
| Developer | Rare |
| Players | 6 |
| Peripherals | NES Controller |

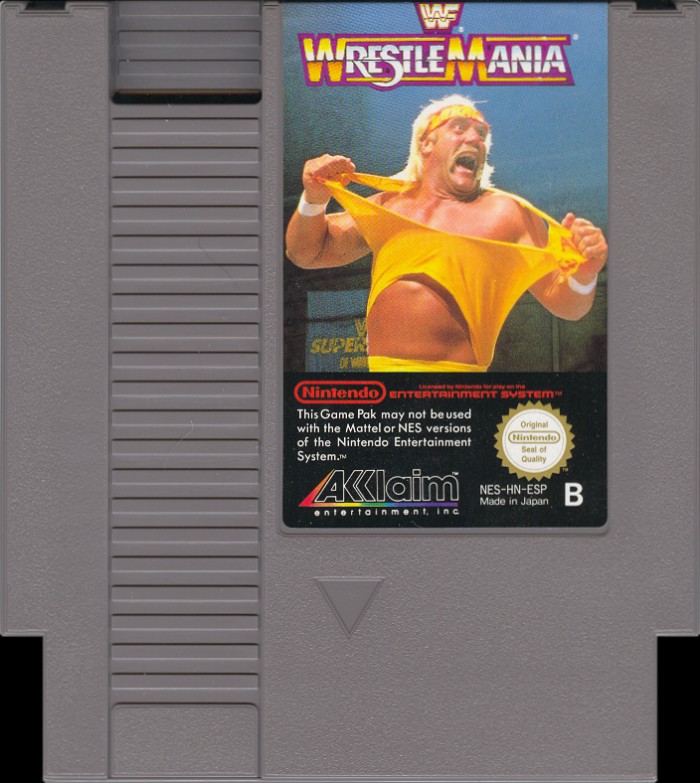

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-HN-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 20 |
PCB Properties
| Name | NES-ANROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9214 |
| Est First Run | April 1992 |
| PCB Class | NES-ANROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx02, 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-HN-0 PRG | 128 KB | 6C4A9735 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6647 | Mask ROM 128 KB | DIP-28 | 2DC 41 | 9214 | |
| U2 CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9210 EJ | 9210 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9214 A | 9214 | |
| U4 HC161 | Phillips | PC74HC161P | 74-161 Series | DIP-16 | 9136 Hnn | 9136 | 673290T |
| U5 HC02 | Texas Instruments | SN74HC02N | 74-02 Series | DIP-14 | 024 GN | 9024 |
