Release Info
| Catalog ID | NES-HN-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1989 |
| Publisher | Acclaim |
| Developer | Rare |
| Players | 6 |
| Peripherals | NES Controller |

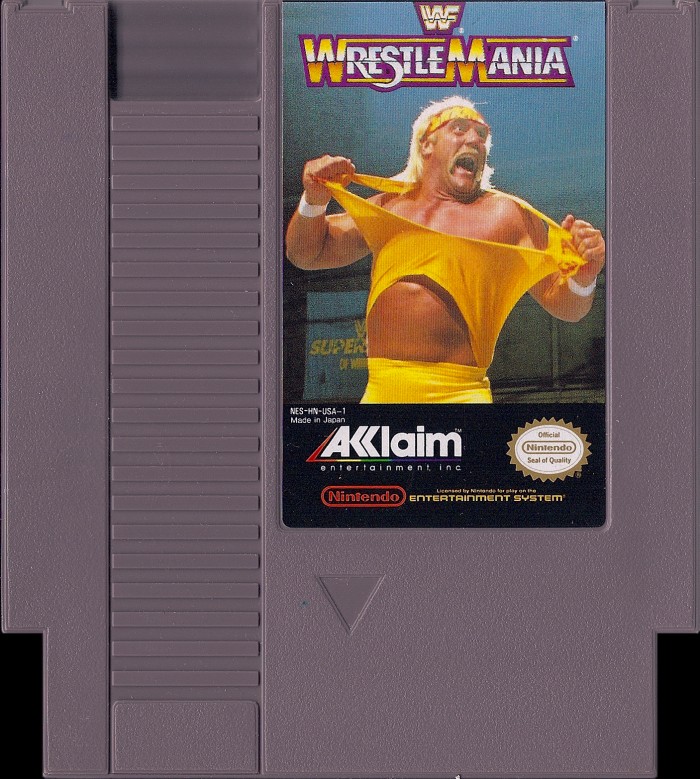

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-HN-USA-1 |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |
PCB Properties
| Name | NES-ANROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8924 - 9236 (3) |
| Est First Run | June 1989 |
| PCB Class | NES-ANROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx02, 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-HN-0 PRG | 128 KB | 37138039 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 5327 | Mask ROM 128 KB | DIP-28 | 2JC 42 | 9236 | |
| U2 CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9225 EJ | 9225 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9234 5 BB | 9234 | |
| U4 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 221 ER | 9221 | |
| U5 HC02 | Texas Instruments | SN74HC02N | 74-02 Series | DIP-14 | 033 GN | 9033 |
