Release Info
| Catalog ID | NES-B2-FRG |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | June 3, 1991 |
| Publisher | Taito |
| Developer | Taito |
| Players | 2 |
| Peripherals | NES Controller |

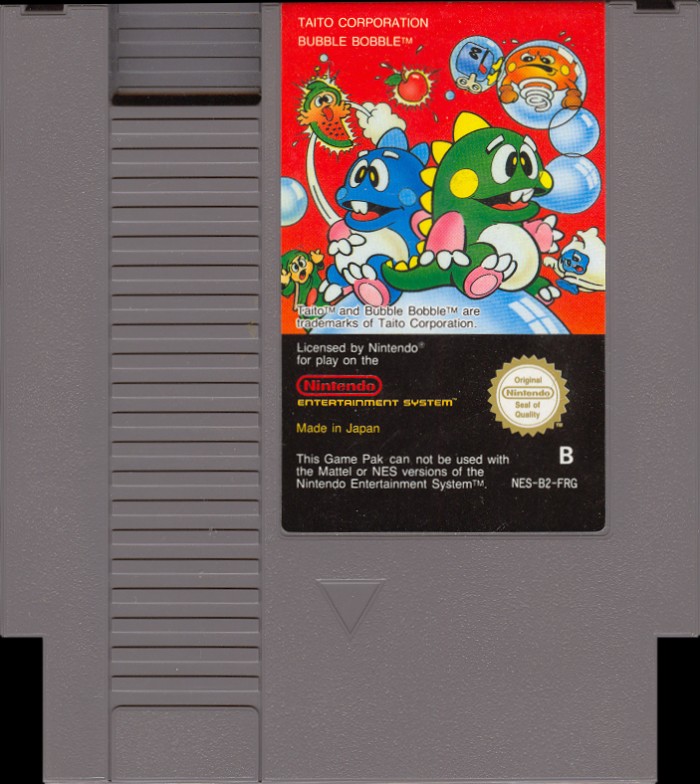

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-B2-FRG |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 01 |

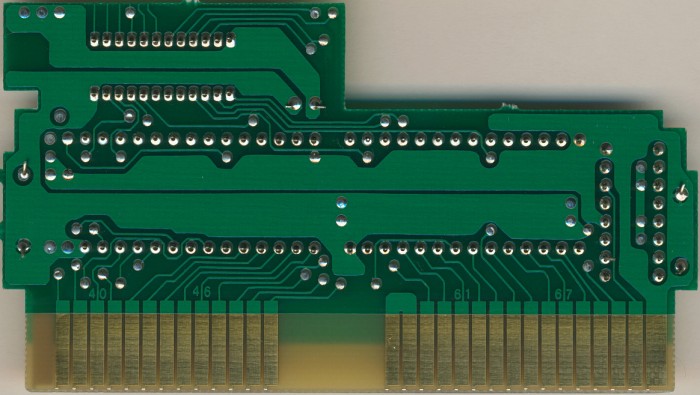

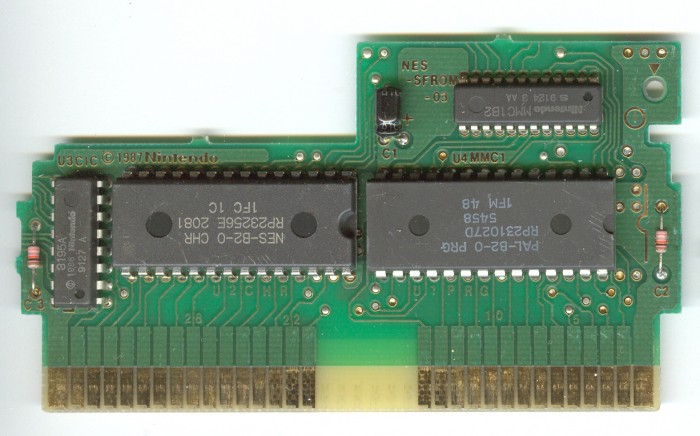

PCB Properties
| Name | NES-SFROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9127 |
| Est First Run | July 1991 |
| PCB Class | NES-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-B2-0 PRG | 128 KB | 1F0D03F8 | 5 |
| CHR0 | NES-B2-0 CHR | 32 KB | A6AA53AC | 8 |
| N/A | ROMs Combined | 160 KB | C99B690A | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 5458 | Mask ROM 128 KB | DIP-28 | 1FM 48 | 9124 | |
| U2 CHR | Ricoh | RP23256E 2081 | Mask ROM 32 KB | DIP-28 | 1FC 1C | 9123 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9127 A | 9127 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9124 3 AA | 9124 |
