Release Info
| Catalog ID |
PAN-BB |
| Region |
USA (NTSC) |
| Class |
Unlicensed |
| Release Date |
1991 |
| Publisher |
Panesian |
| Developer |
C & E |
| Players |
2 |
| Peripherals |
NES Controller |
Cart Properties
| Cart Producer |
|
| Color |
Black |
| Form Factor |
Original |
| Embossed Text |
|
| Front Label ID |
|
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|

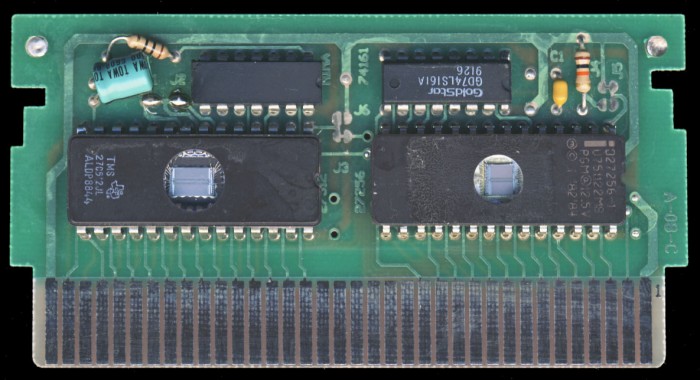

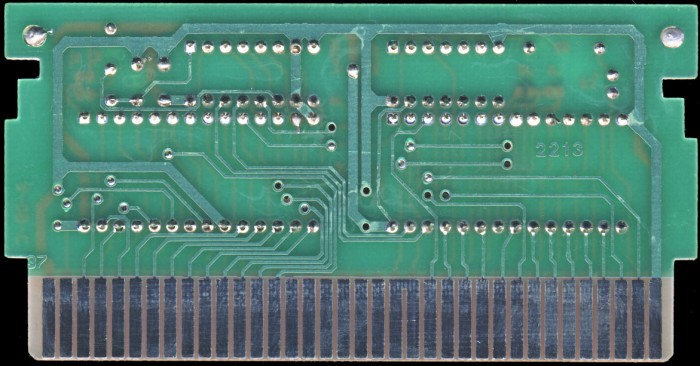

PCB Properties
| Name |
A-08-C |
| PCB Producer |
AVE |
| Manufacturer |
ACL |
| Mfg Range |
9126 |
| Est First Run |
June 1991 |
| PCB Class |
AVE-74*161 |
| iNES Mapper |
3 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
0 KB |
| CIC Type |
MX8018 |
| Hardware |
74xx161 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
Not Present |
32 KB |
71547D94 |
1 |
| CHR0 |
Not Present |
64 KB |
7505B144 |
1 |
| N/A |
ROMs Combined |
96 KB |
68AFEF5F |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| 27256 |
Intel |
D27256-1
|
UV EPROM
32 KB
|
DIP-28 |
751
U
|
8751 |
|
| 27512 |
Texas Instruments |
TMS27C512JL
|
UV EPROM
64 KB
|
DIP-28 |
8844
ALDP
|
8844 |
|
| NINA |
Macronix |
MX8018-0002-A
|
AVE CIC
|
DIP-14 |
|
|
|
| 74161 |
GoldStar |
GD74LS161A
|
74-161 Series
|
DIP-16 |
9126
|
9126 |
|
