Release Info
| Catalog ID | NES-ZE-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1989 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Zapper Light Gun |

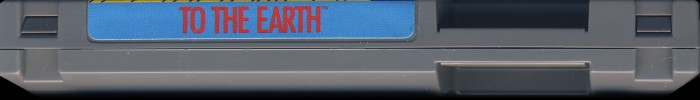

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-ZE-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 05 |

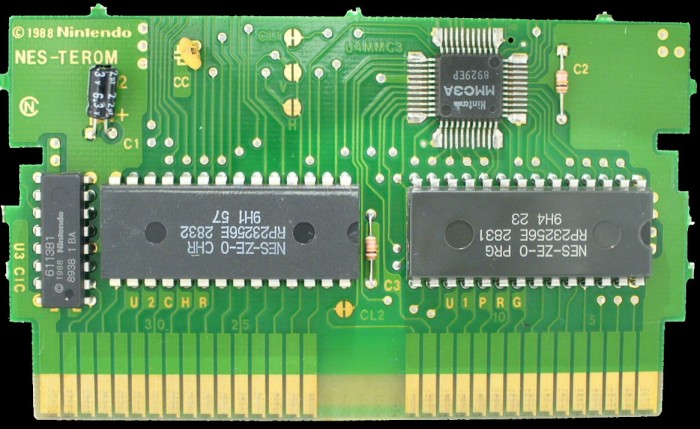

PCB Properties
| Name | NES-TEROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8936 - 8938 (2) |
| Est First Run | September 1989 |
| PCB Class | NES-TEROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-ZE-0 PRG | 32 KB | 163E86C0 | 2 |
| CHR0 | NES-ZE-0 CHR | 32 KB | 9426179D | 5 |
| N/A | ROMs Combined | 64 KB | DE8FD935 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 2831 | Mask ROM 32 KB | DIP-28 | 9H4 23 | 8935 | |
| U2 CHR | Ricoh | RP23256E 2832 | Mask ROM 32 KB | DIP-28 | 9H1 57 | 8932 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8938 1 BA | 8938 | |
| U4 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8929 EP | 8929 |
