Release Info
| Catalog ID | NES-ZE-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | February 23, 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Zapper Light Gun |

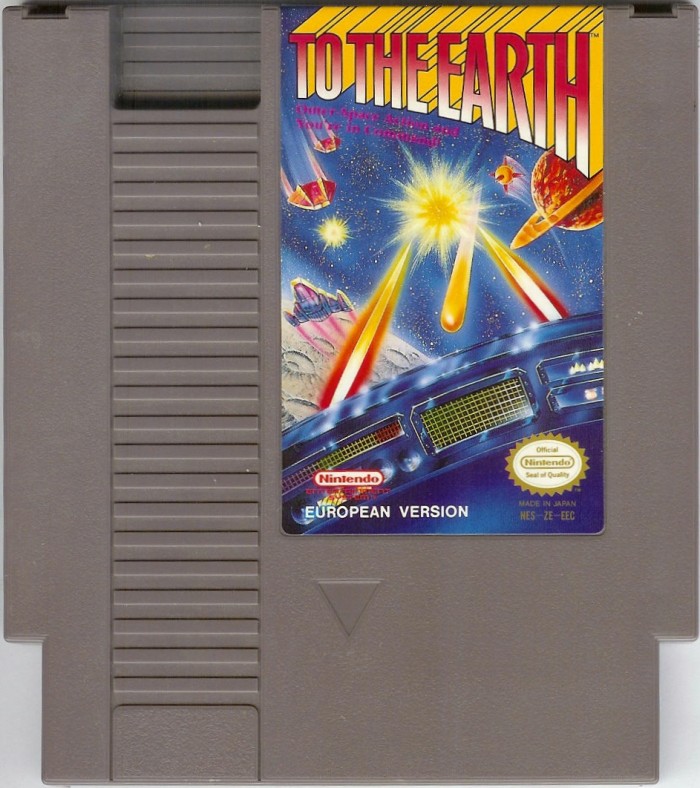

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-ZE-EEC |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

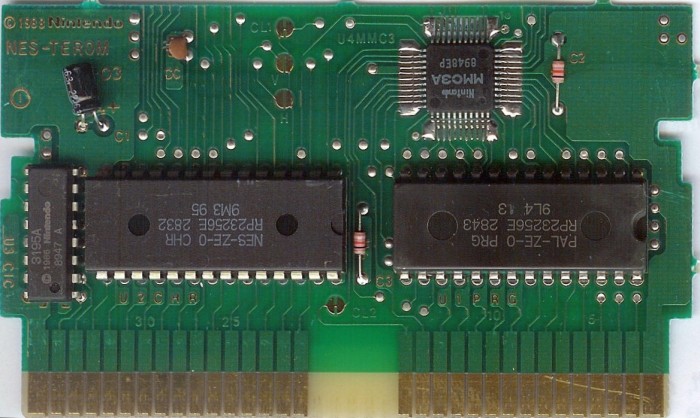

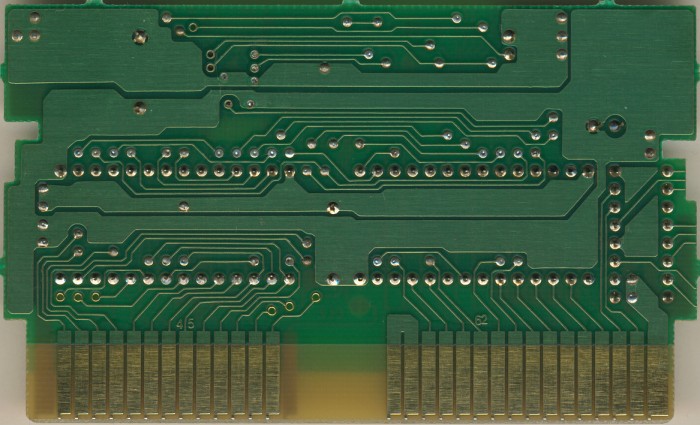

PCB Properties
| Name | NES-TEROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8944 - 8951 (3) |
| Est First Run | November 1989 |
| PCB Class | NES-TEROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-ZE-0 PRG | 32 KB | 418C9992 | 3 |
| CHR0 | NES-ZE-0 CHR | 32 KB | 9426179D | 5 |
| N/A | ROMs Combined | 64 KB | 790B295B | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 2843 | Mask ROM 32 KB | DIP-28 | 9L4 43 | 8948 | |
| U2 CHR | Ricoh | RP23256E 2832 | Mask ROM 32 KB | DIP-28 | 9M3 95 | 8951 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8947 A | 8947 | |
| U4 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8948 EP | 8948 |
