Release Info
| Catalog ID | NAM-FMK-5800 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 22, 1989 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |

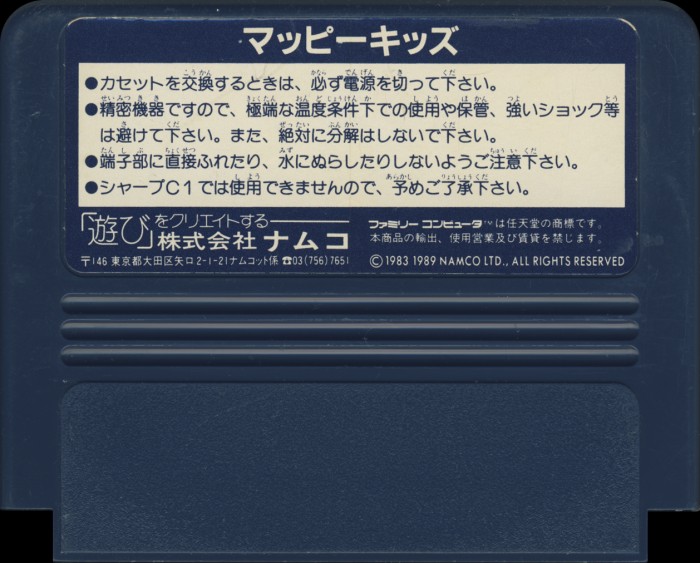

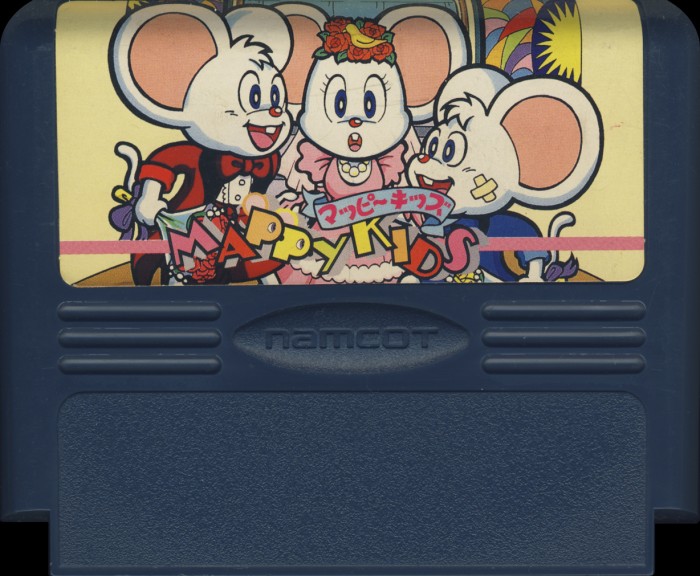

Cart Properties
| Cart Producer | |
|---|---|
| Color | Blue |
| Form Factor | Large |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | LROG044-01 |
|---|---|
| PCB Producer | |
| Manufacturer | Sharp |
| Mfg Range | 8943 - 8949 (2) |
| Est First Run | October 1989 |
| PCB Class | NAMCOT-163 |
| iNES Mapper | 19 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 163 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 598FB9F5 | 2 |
| CHR0 | Not Present | 128 KB | 5A592B23 | 2 |
| N/A | ROMs Combined | 256 KB | 35D8C961 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|

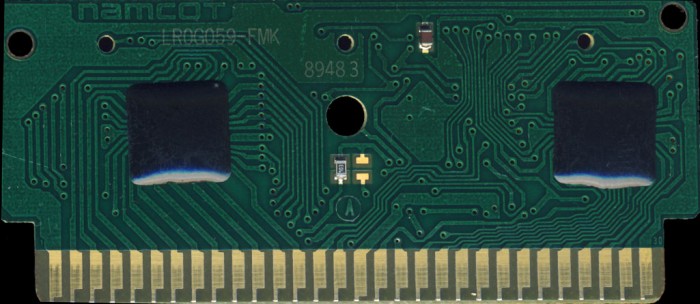

| PCB | Sharp | LROG059 FMK | Chip-on-Board PCB | PCB | 8943 3 | 8943 | |
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||

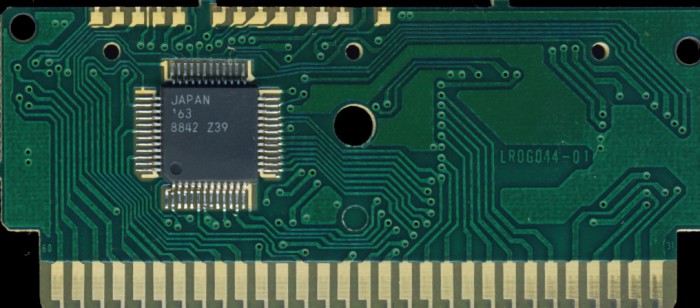

| Fujitsu | 163 | Namcot 163 | TQFP-48 | 8842 Z39 | 8842 |
