Release Info
| Catalog ID | NAM-NMP-4500-04 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 14, 1984 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |

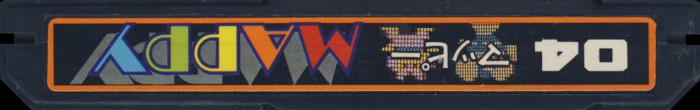

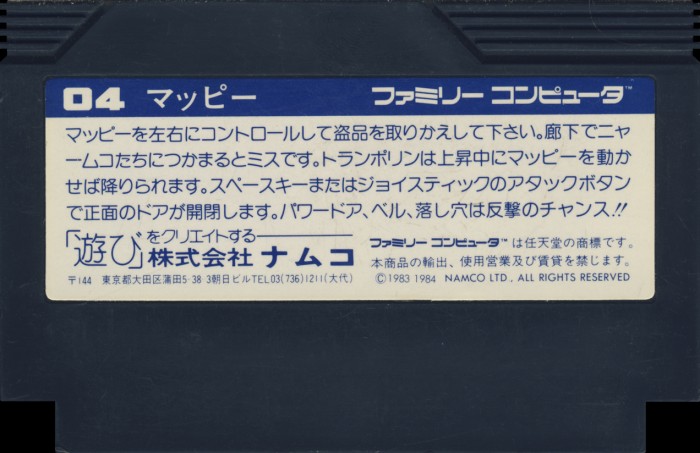

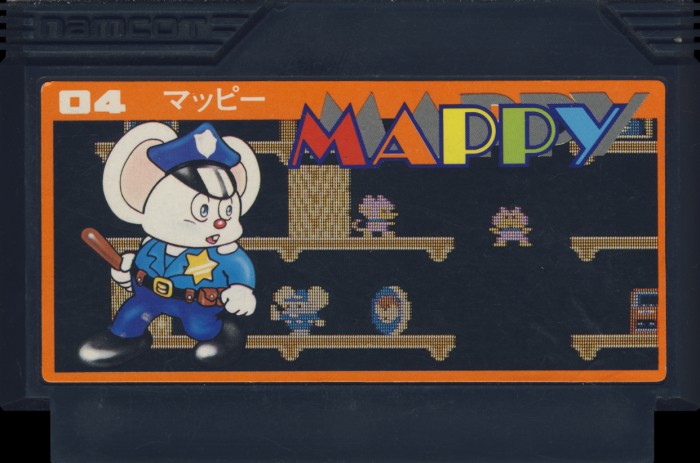

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | 04 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

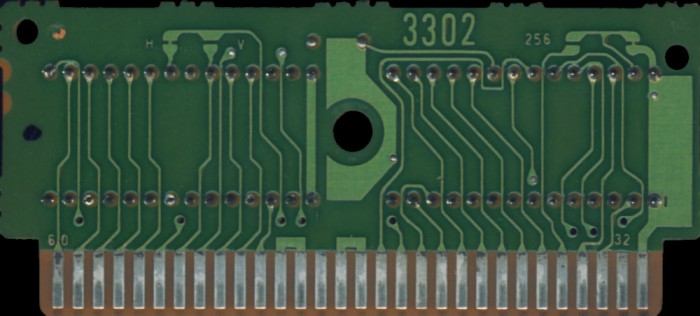

PCB Properties
| Name | 3302 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8439 |
| Est First Run | September 1984 |
| PCB Class | NAMCOT-3302 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT MP PRG | 16 KB | 25482CEB | 1 |
| CHR0 | NAMCOT MP CHR | 8 KB | B060AFC5 | 1 |
| N/A | ROMs Combined | 24 KB | 5D1301C5 | 1 |

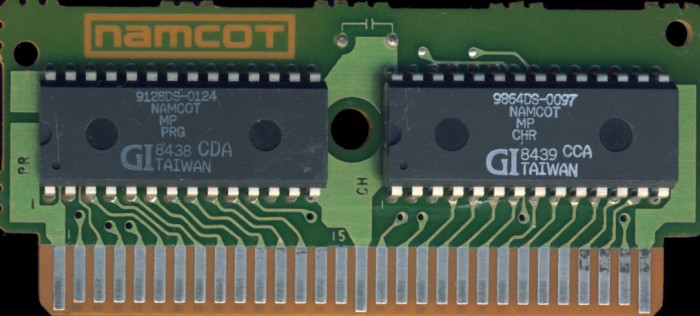

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | General Instrument | 9128DS 0124 | Mask ROM 16 KB | DIP-28 | 8438 CDA | 8438 | |
| CH | General Instrument | 9864DS 0097 | Mask ROM 8 KB | DIP-28 | 8439 CCA | 8439 |
