Release Info
| Catalog ID | NES-AL-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | September 26, 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

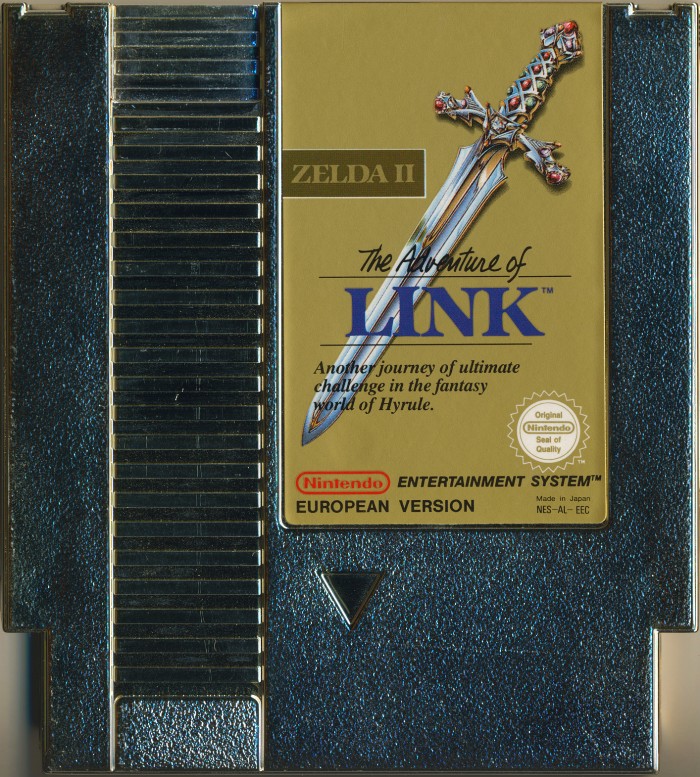

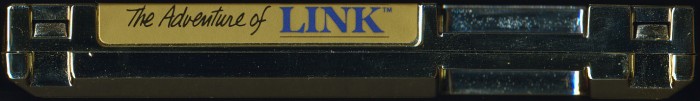

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Gold |
| Form Factor | 3-Screw |

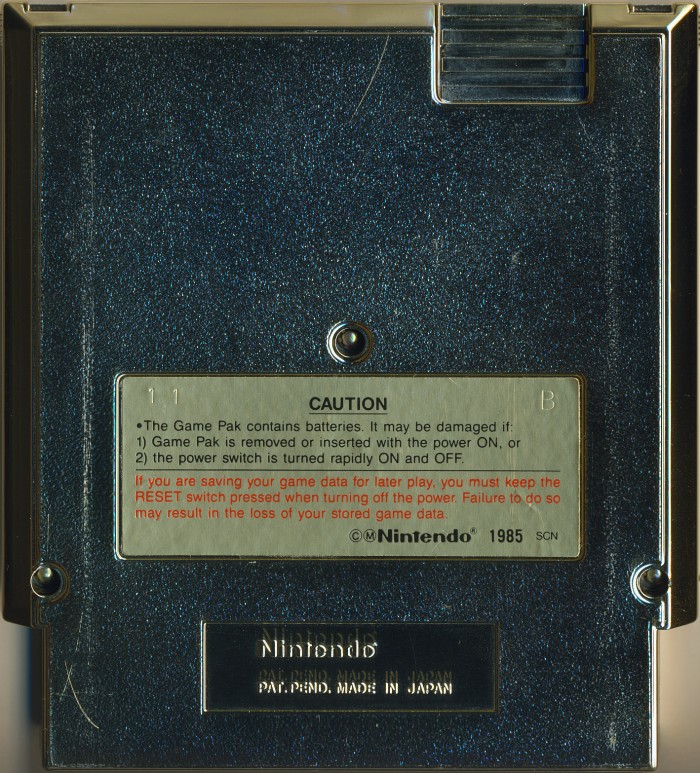

| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-AL-EEC |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

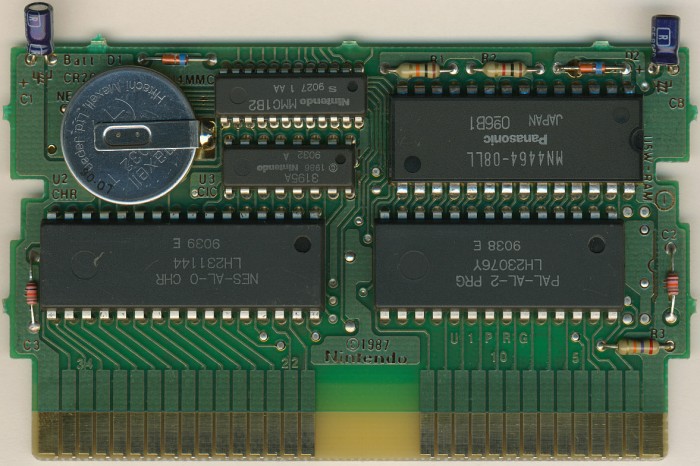

PCB Properties
| Name | NES-SKROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8822 - 9039 (5) |
| Est First Run | June 1988 |
| PCB Class | NES-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-AL-2 PRG | 128 KB | C15A50FC | 5 |
| CHR0 | NES-AL-0 CHR | 128 KB | 9C41CE57 | 11 |
| N/A | ROMs Combined | 256 KB | 47B6A39F | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2307 6Y | Mask ROM 128 KB | DIP-28 | 9038 E | 9038 | |
| U2 CHR | Sharp | LH2311 44 | Mask ROM 128 KB | DIP-32 | 9039 E | 9039 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9032 A | 9032 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9027 1 AA | 9027 | |
| U5 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 0 B1 | 9039 |
