Release Info
| Catalog ID | NES-AL-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

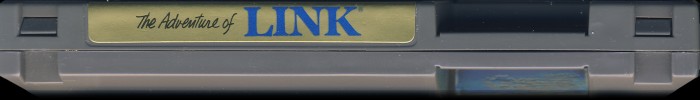

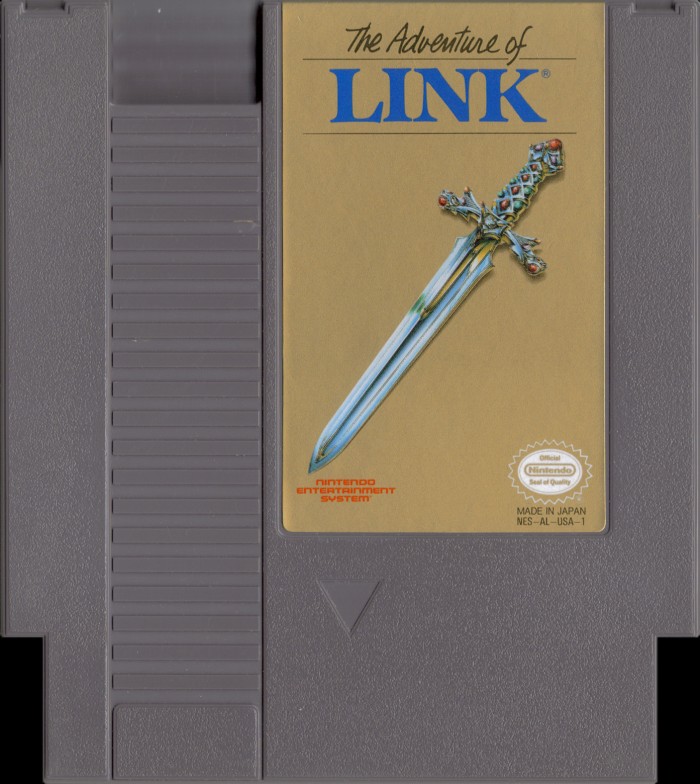

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-AL-USA-1 |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

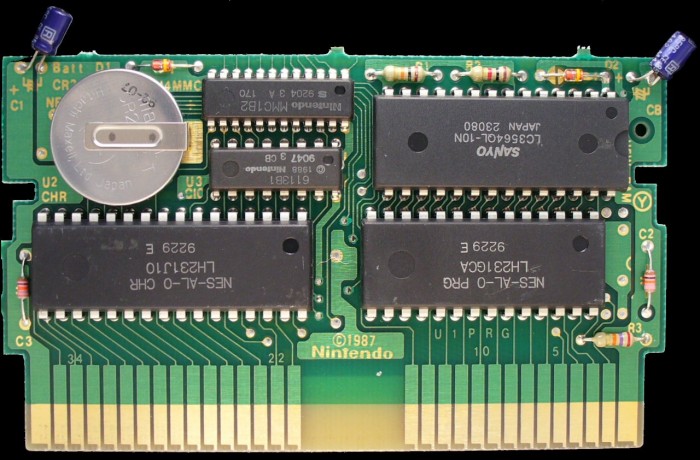

PCB Properties
| Name | NES-SKROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8932 - 9229 (4) |
| Est First Run | August 1989 |
| PCB Class | NES-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-AL-0 PRG | 128 KB | EE8C9971 | 4 |
| CHR0 | NES-AL-0 CHR | 128 KB | 9C41CE57 | 11 |
| N/A | ROMs Combined | 256 KB | BA322865 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G CA | Mask ROM 128 KB | DIP-28 | 9229 E | 9229 | |
| U2 CHR | Sharp | LH231J 10 | Mask ROM 128 KB | DIP-32 | 9229 E | 9229 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9047 3 CB | 9047 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9204 3 A 170 | 9204 | |
| U5 W-RAM | Sanyo | LC3564QL-10N | SRAM 8 KB | DIP-28 | 23 080 | 9209 |
