Release Info
| Catalog ID | TFC-AN-5400-10 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 26, 1986 |
| Publisher | Taito |
| Developer | Taito |
| Players | 1 |
| Peripherals | Vaus Controller,Famicom Controller |

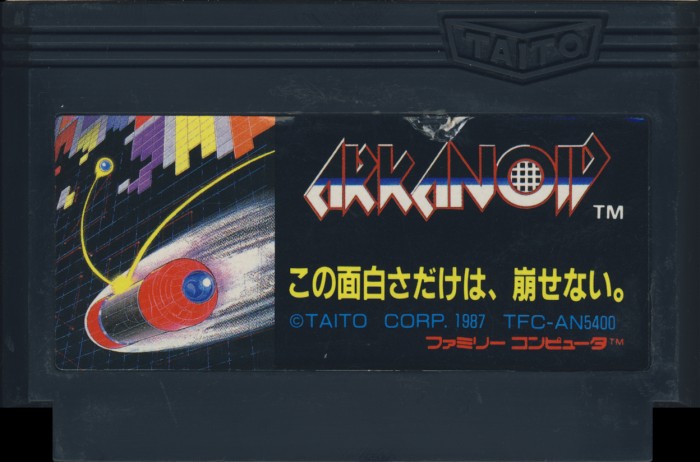

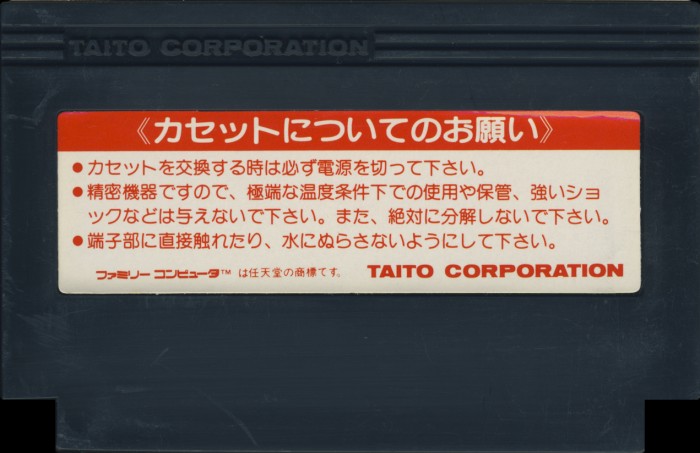

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Short Label / Logo 1 / 3 Screws |
| Embossed Text | |
| Front Label ID | TFC-AN5400 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

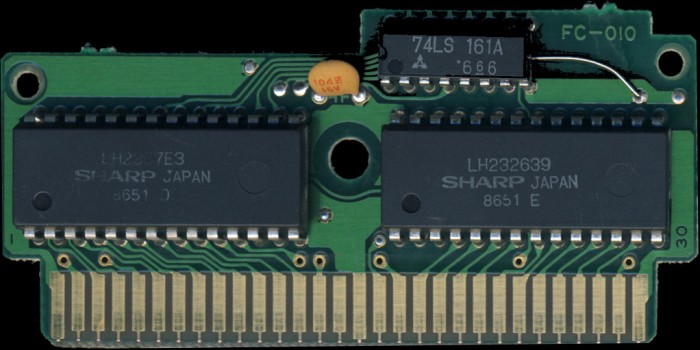

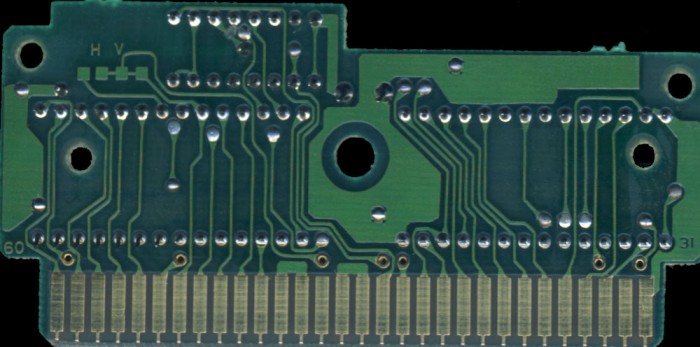

PCB Properties
| Name | FC-010 |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8651 |
| Est First Run | December 1986 |
| PCB Class | TAITO-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 35893B67 | 1 |
| CHR0 | Not Present | 16 KB | C5789B20 | 3 |
| N/A | ROMs Combined | 48 KB | D89E5A67 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2357 E3 | Mask ROM 32 KB | DIP-28 | 8651 D | 8651 | ||
| Sharp | LH2326 39 | Mask ROM 16 KB | DIP-28 | 8651 E | 8651 | ||
| Panasonic | 74LS161A | 74-161 Series | DIP-16 | .6 | 8626 |
