Release Info
| Catalog ID | NES-AR-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | August 1987 |
| Publisher | Taito |
| Developer | Taito |
| Players | 1 |
| Peripherals | NES Controller,Vaus Controller |

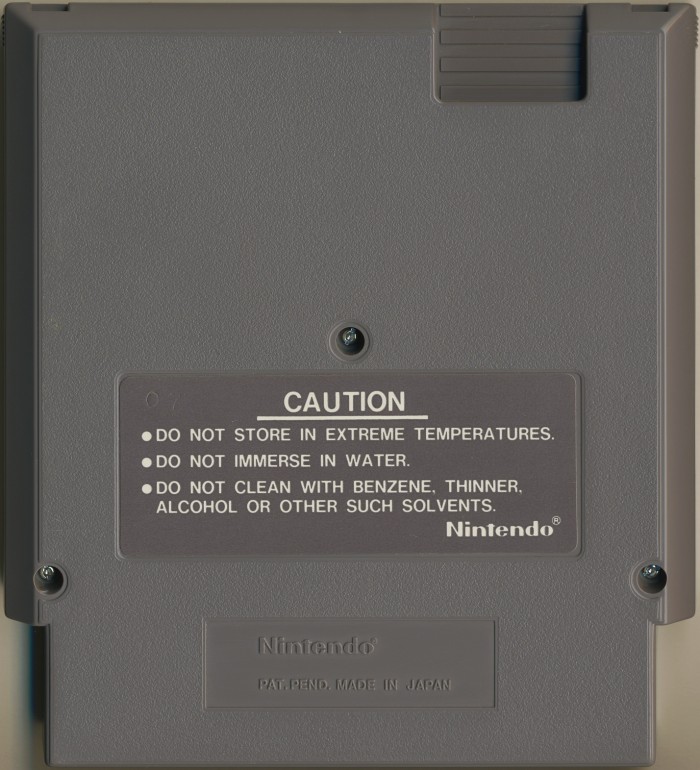

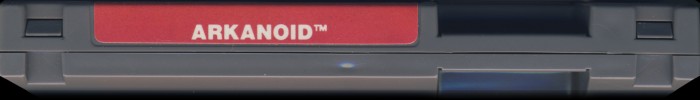

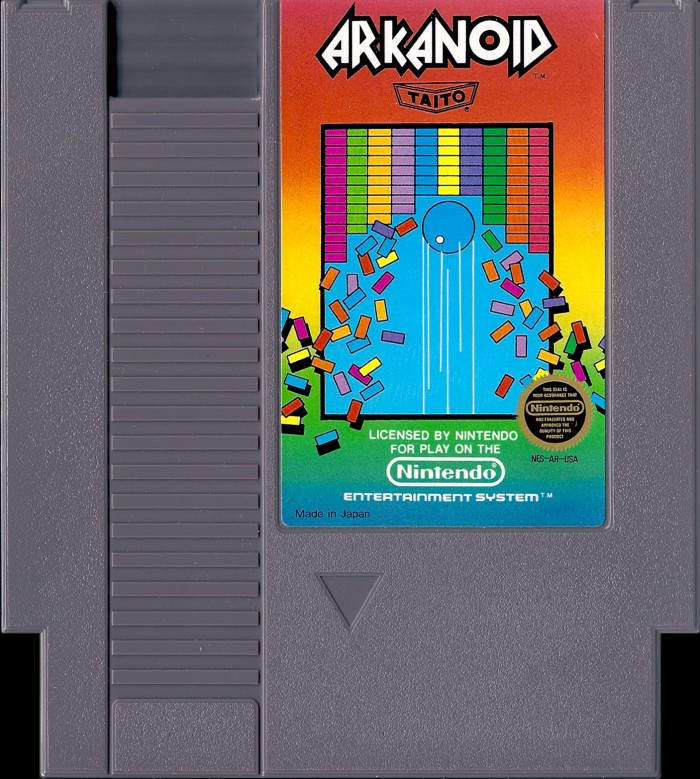

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-AR-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 05 |

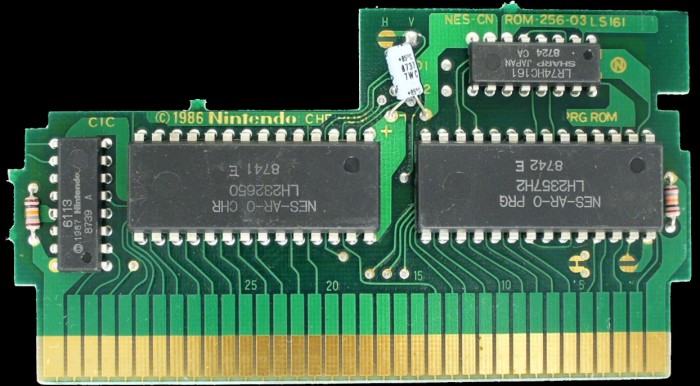

PCB Properties
| Name | NES-CN-ROM-256-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8728 - 8742 (2) |
| Est First Run | July 1987 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-AR-0 PRG | 32 KB | B8BB48D3 | 2 |
| CHR0 | NES-AR-0 CHR | 16 KB | C5789B20 | 3 |
| N/A | ROMs Combined | 48 KB | 32FB0583 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2357 H2 | Mask ROM 32 KB | DIP-28 | 8742 E | 8742 | |
| CHR ROM | Sharp | LH2326 50 | Mask ROM 16 KB | DIP-28 | 8741 E | 8741 | |
| CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8739 A | 8739 | |
| LS161 | Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8724 CA | 8724 |
