Release Info
| Catalog ID | NES-VN-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1990 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | NES Controller |

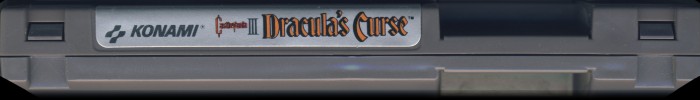

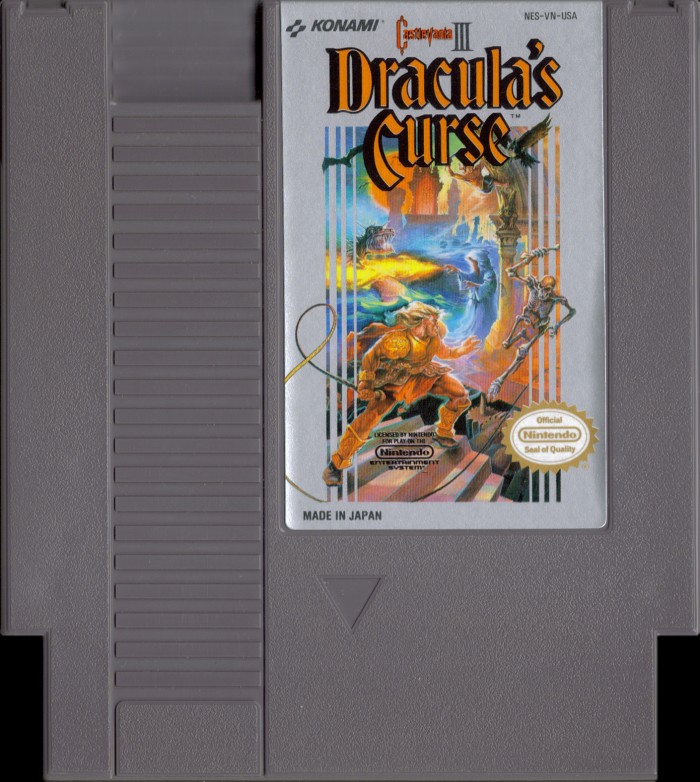

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-VN-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

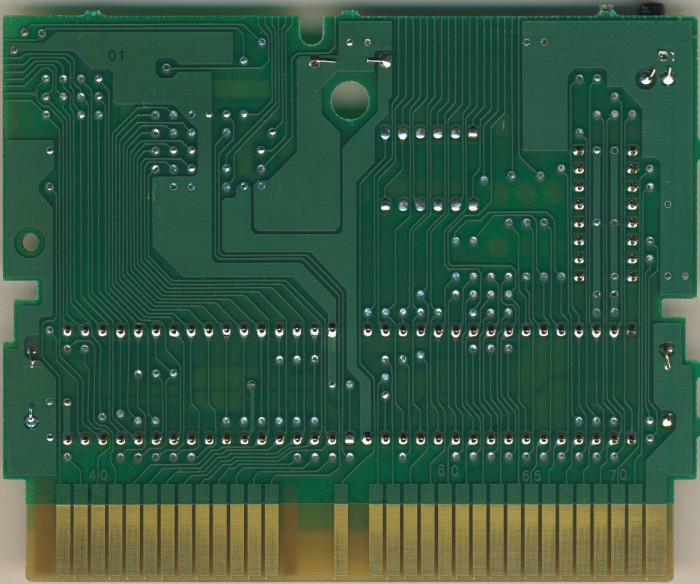

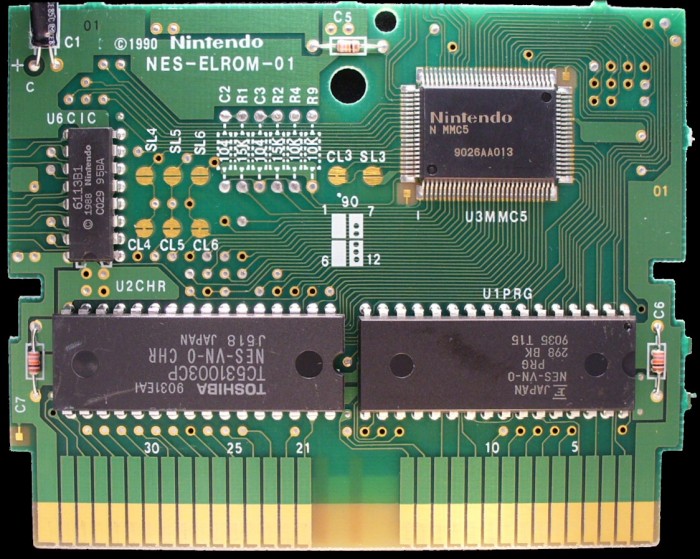

PCB Properties
| Name | NES-ELROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9034 - 9050 (4) |
| Est First Run | August 1990 |
| PCB Class | NES-ELROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-VN-0 PRG | 256 KB | 95CA9EC7 | 4 |
| CHR0 | NES-VN-0 CHR | 128 KB | 1B448E0A | 4 |
| N/A | ROMs Combined | 384 KB | ED2465BE | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Fujitsu | MB832000 | Mask ROM 256 KB | DIP-32 | 9035 T15 | 9035 | |
| U2 CHR | Toshiba | TC531003CP J518 | Mask ROM 128 KB | DIP-32 | 9031 EAI | 9031 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 9026 AA013 | 9026 | |
| U6 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 029 C | 9029 |
