Release Info
| Catalog ID | NES-VN-FRG |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | December 10, 1992 |
| Publisher | Palcom |
| Developer | Konami |
| Players | 1 |
| Peripherals | NES Controller |

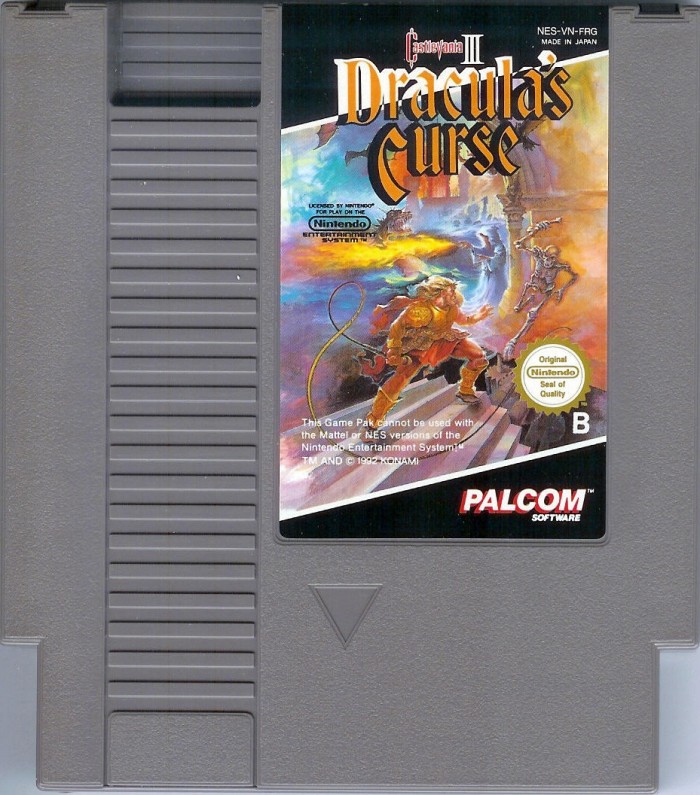

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-VN-FRG |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

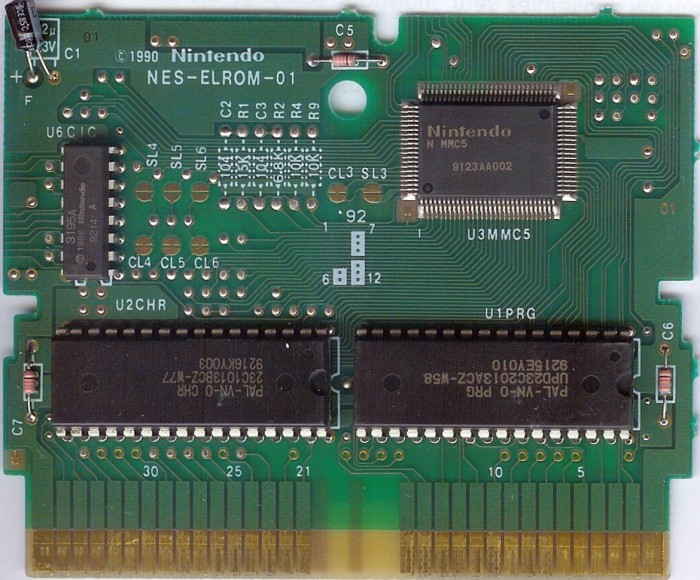

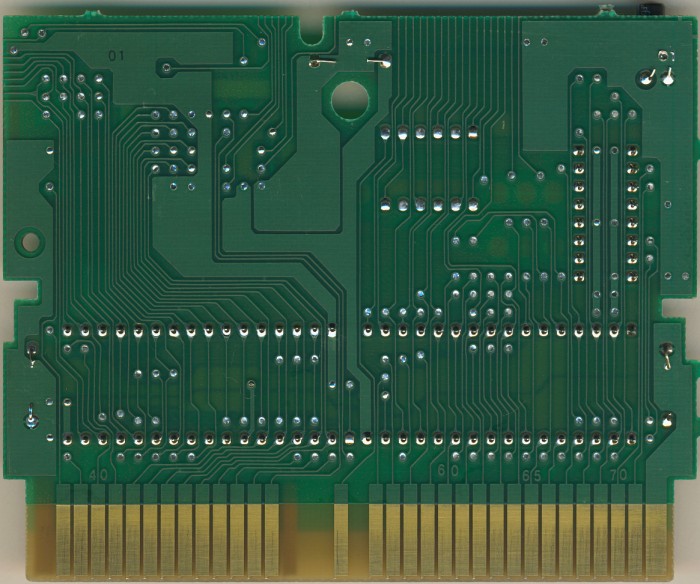

PCB Properties
| Name | NES-ELROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9216 |
| Est First Run | April 1992 |
| PCB Class | NES-ELROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-VN-0 PRG | 256 KB | 637E366A | 3 |
| CHR0 | PAL-VN-0 CHR | 128 KB | 9423BB72 | 3 |
| N/A | ROMs Combined | 384 KB | 671F23A8 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013ACZ W58 | Mask ROM 256 KB | DIP-32 | 9215 EY010 | 9215 | |
| U2 CHR | NEC | 23C1013BCZ W77 | Mask ROM 128 KB | DIP-32 | 9216 KY003 | 9216 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 9123 AA002 | 9123 | |
| U6 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9214 A | 9214 |
