Release Info
| Catalog ID | NES-RC-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | January 15, 1988 |
| Publisher | Nintendo |
| Developer | Square |
| Players | 1 |
| Peripherals | NES Controller,3-D Glasses |

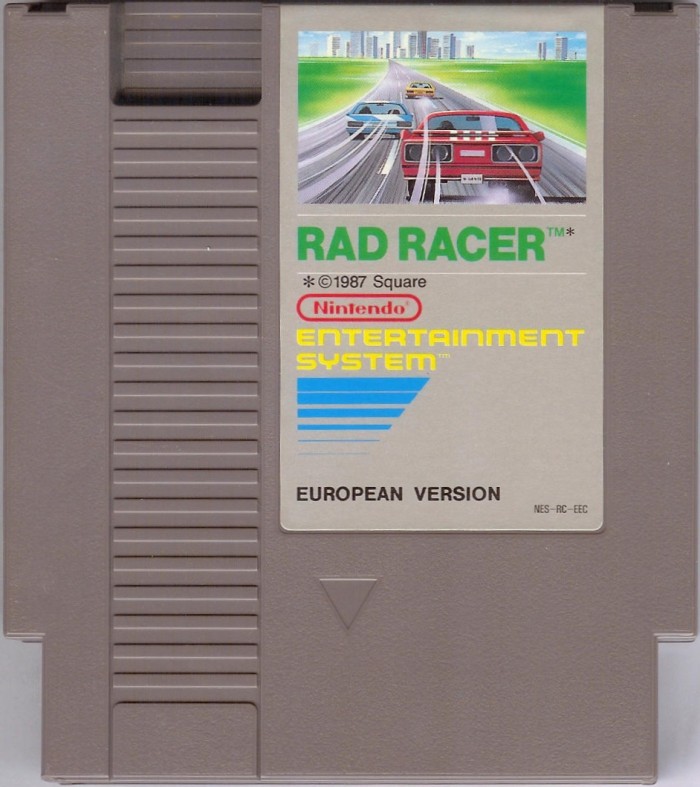

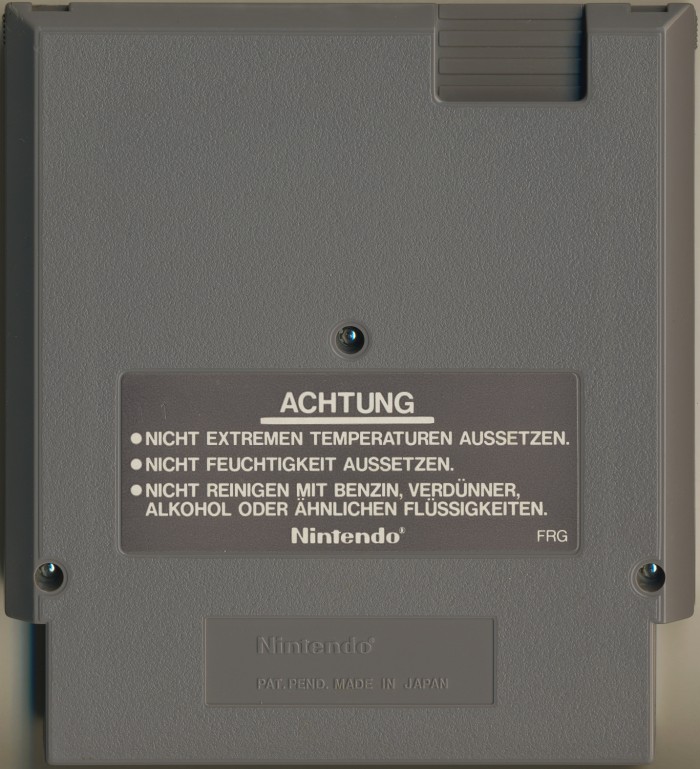

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-RC-EEC |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-SGROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8748 - 8914 (4) |
| Est First Run | December 1987 |
| PCB Class | NES-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-RC-0 PRG | 128 KB | 654F4E90 | 8 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG-ROM | Sharp | LH2310 7L | Mask ROM 128 KB | DIP-28 | 8823 E | 8823 | |
| IC2 CHR-RAM | Sharp | LH5164D3-L | SRAM 8 KB | DIP-28 | 8834 3 DA | 8834 | |
| IC3 MMC | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8832 3 A | 8832 | |
| IC4 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8834 A | 8834 |
