Release Info
| Catalog ID | NES-RC-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 1987 |
| Publisher | Nintendo |
| Developer | Square |
| Players | 1 |
| Peripherals | NES Controller,3-D Glasses |

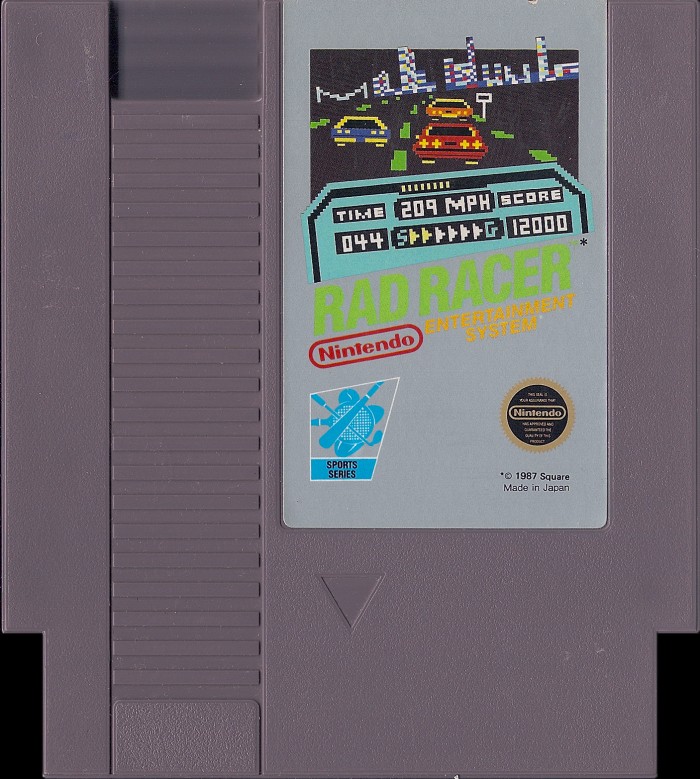

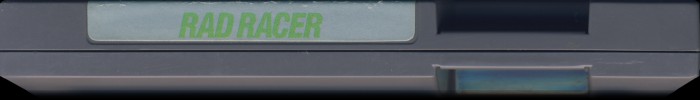

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 00 |
PCB Properties
| Name | NES-SGROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8742 - 9004 (3) |
| Est First Run | October 1987 |
| PCB Class | NES-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113 |
| Hardware | MMC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-RC-0 PRG | 128 KB | 8B9D3E9C | 8 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG-ROM | Sharp | LH2310 5J | Mask ROM 128 KB | DIP-28 | 8742 D | 8742 | |
| IC2 CHR-RAM | Sharp | LH5164D3 | SRAM 8 KB | DIP-28 | 8741 3 D | 8741 | |
| IC3 MMC | Sharp | MMC1 | Nintendo MMC1 | DIP-24 | 8739 A | 8739 | |
| IC4 CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8741 A | 8741 |
