Release Info
| Catalog ID | AVE-IM |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1989 |
| Publisher | AVE |
| Developer | Epyx |
| Players | 1 |
| Peripherals | NES Controller |

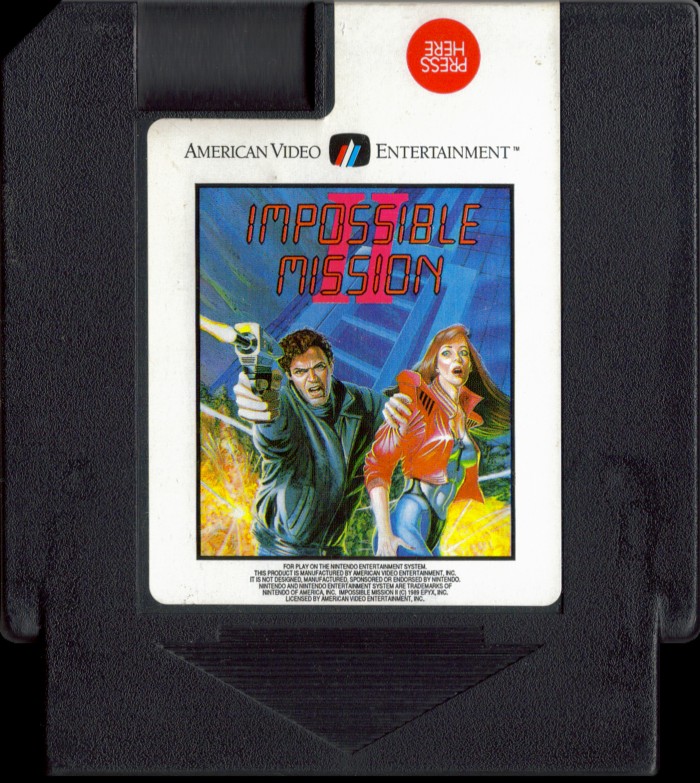

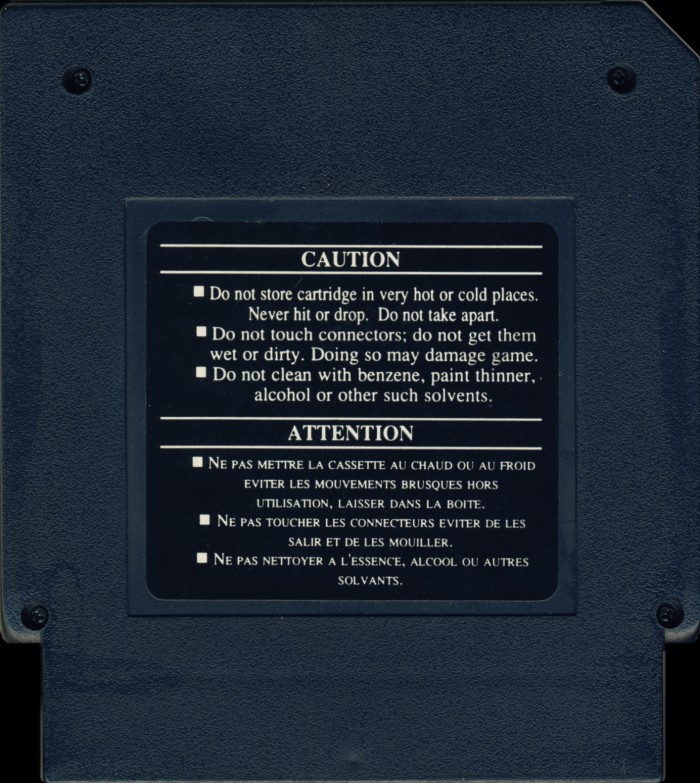

Cart Properties
| Cart Producer | AVE |
|---|---|
| Color | Black |
| Form Factor | Cut Corner |
| Embossed Text | None |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

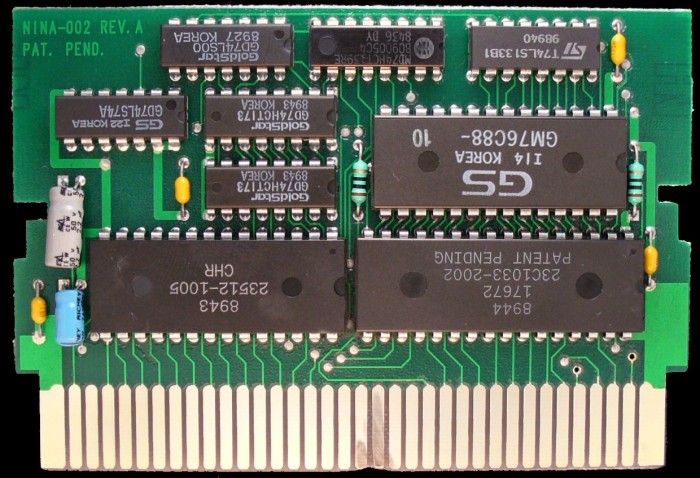

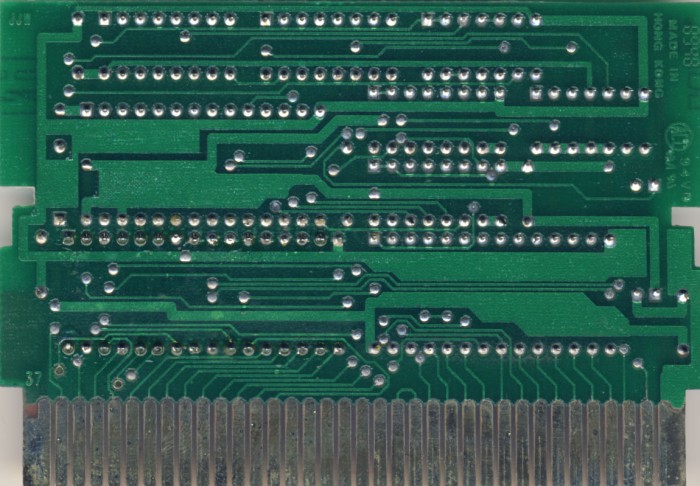

PCB Properties
| Name | NINA-002 REV. A |
|---|---|
| PCB Producer | AVE |
| Manufacturer | ACL |
| Mfg Range | 8944 - 8945 (3) |
| Est First Run | November 1989 |
| PCB Class | AVE-NINA-02 |
| iNES Mapper | 34 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx00, 74xx133, 74xx139, 74xx173, 74xx173, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 64 KB | 3A5CC3FA | 5 |
| CHR0 | CHR | 64 KB | B66C53B9 | 5 |
| N/A | ROMs Combined | 128 KB | 92A3D007 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Macronix | 23512 1005 | Mask ROM 64 KB | DIP-28 | 8943 | 8943 | ||
| Macronix | 23C1033 2002 | Mask ROM 128 KB | DIP-32 | 8944 | 8944 | 17672 | |
| GoldStar | GD74LS74A | 74-74 Series | DIP-14 | I22 | 8922 | ||
| GoldStar | GM76C88-10 | SRAM 8 KB | DIP-28 | I14 | 8914 | ||
| GoldStar | GD74HCT173 | 74-173 Series | DIP-16 | 8943 | 8943 | ||
| Mitel | MD74HCT139RE | 74-139 Series | DIP-16 | 8436 DY | 8436 | B09005C4 | |
| ST Micro | T74LS133B1 | 74-133 Series | DIP-16 | 8940 9 | 8940 | ||
| GoldStar | GD74HCT173 | 74-173 Series | DIP-16 | 8943 | 8943 | ||
| GoldStar | GD74LS00 | 74-00 Series | DIP-14 | 8927 | 8927 |
