Release Info
| Catalog ID | SEI-IM |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1989 |
| Publisher | SEI |
| Developer | Epyx |
| Players | 1 |
| Peripherals | NES Controller |

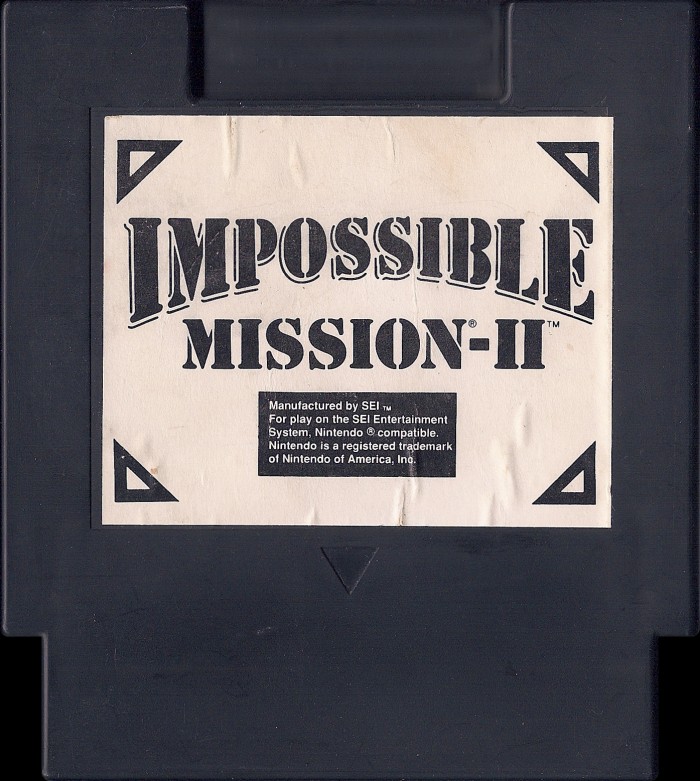

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Original |

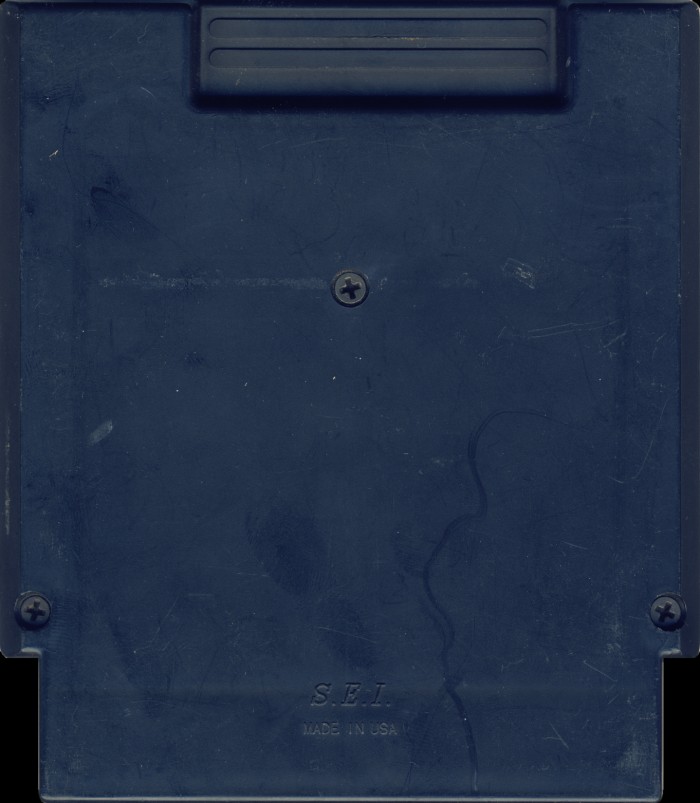

| Embossed Text | S.E.I. Made in USA |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

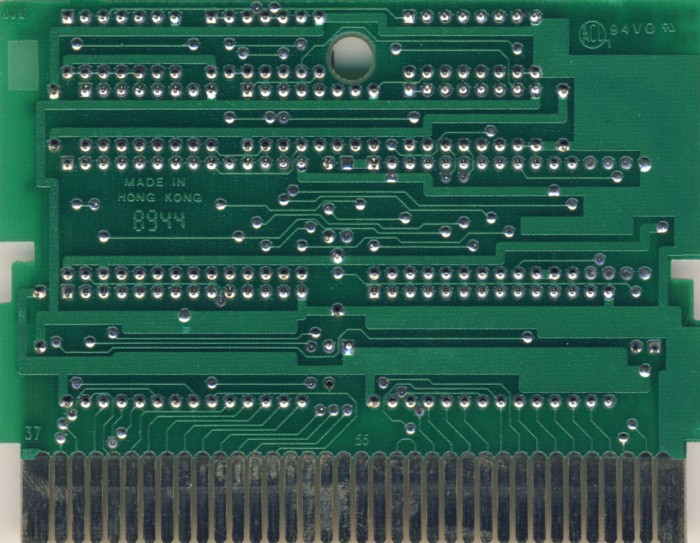

PCB Properties
| Name | NINA-001 REV. A |
|---|---|
| PCB Producer | AVE |
| Manufacturer | ACL |
| Mfg Range | 8941 - 8944 (2) |
| Est First Run | October 1989 |
| PCB Class | AVE-NINA-01 |
| iNES Mapper | 34 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | NINA |
| Hardware | 74xx00, 74xx133, 74xx139, 74xx173, 74xx173, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 64 KB | 3A5CC3FA | 5 |
| CHR0 | CHR | 64 KB | B66C53B9 | 5 |
| N/A | ROMs Combined | 128 KB | 92A3D007 | 5 |

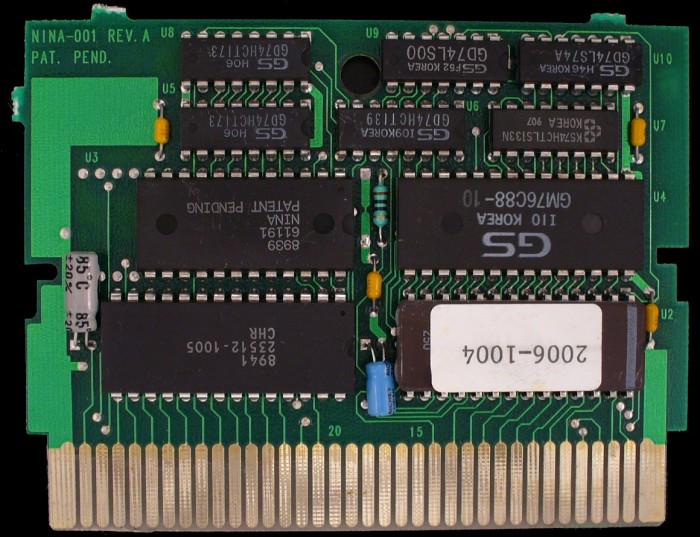

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Macronix | 23512 1005 | Mask ROM 64 KB | DIP-28 | 8941 | 8941 | |
| U10 | GoldStar | GD74LS74A | 74-74 Series | DIP-14 | H46 | 8846 | |
| U2 | National Semiconductor | NM27C512AQ-250 | UV EPROM 64 KB | DIP-28 | 8918 B | 8918 | |
| U3 | Macronix | NINA | AVE CIC | DIP-24 | 8939 | 8939 | 61191 |
| U4 | GoldStar | GM76C88-10 | SRAM 8 KB | DIP-28 | I10 | 8910 | |
| U5 | GoldStar | GD74HCT173 | 74-173 Series | DIP-16 | H06 | 8806 | |
| U6 | GoldStar | GD74HCT139 | 74-139 Series | DIP-16 | I09 | 8909 | |
| U7 | Samsung | KS74HCTLS133N | 74-133 Series | DIP-16 | 907 | 8907 | |
| U8 | GoldStar | GD74HCT173 | 74-173 Series | DIP-16 | H06 | 8806 | |
| U9 | GoldStar | GD74LS00 | 74-00 Series | DIP-14 | F52 | 8652 |
