Release Info
| Catalog ID | NES-UV-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1991 |
| Publisher | Kemco |
| Developer | Icom Simulations |
| Players | 1 |
| Peripherals | NES Controller |

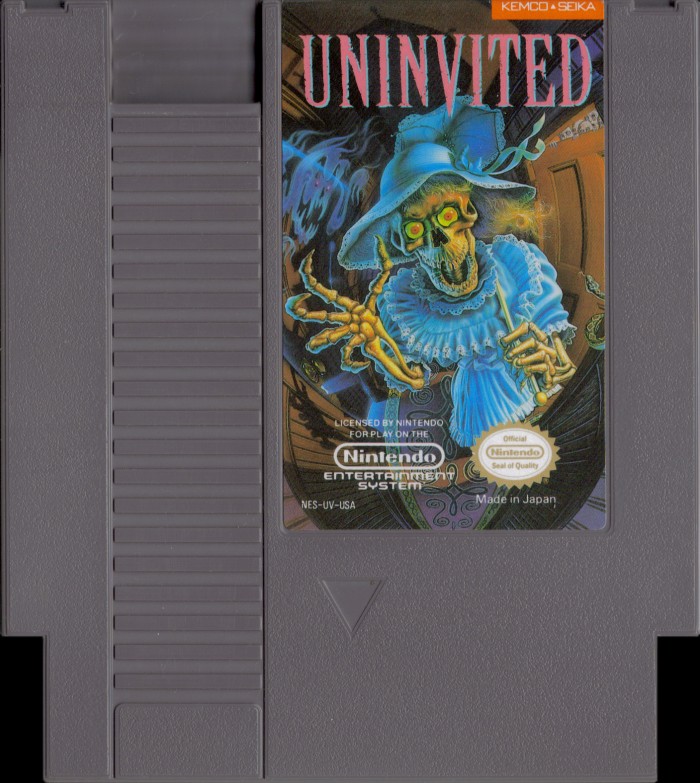

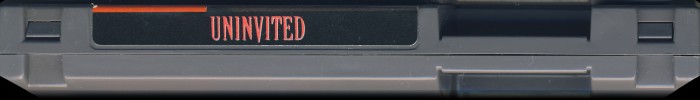

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-UV-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 08 |

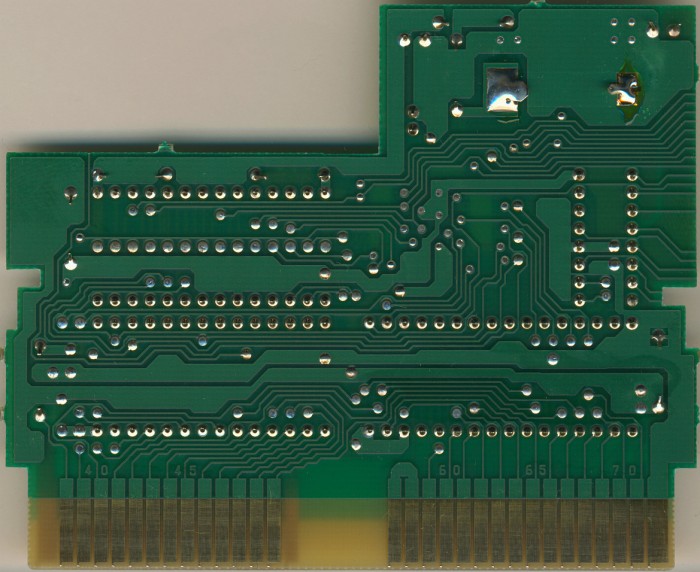

PCB Properties
| Name | NES-TKROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9118 |
| Est First Run | May 1991 |
| PCB Class | NES-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-UV-0 PRG | 128 KB | B258D6CA | 1 |
| CHR0 | NES-UV-0 CHR | 128 KB | 5A19C566 | 1 |
| N/A | ROMs Combined | 256 KB | 9BAC73EF | 1 |

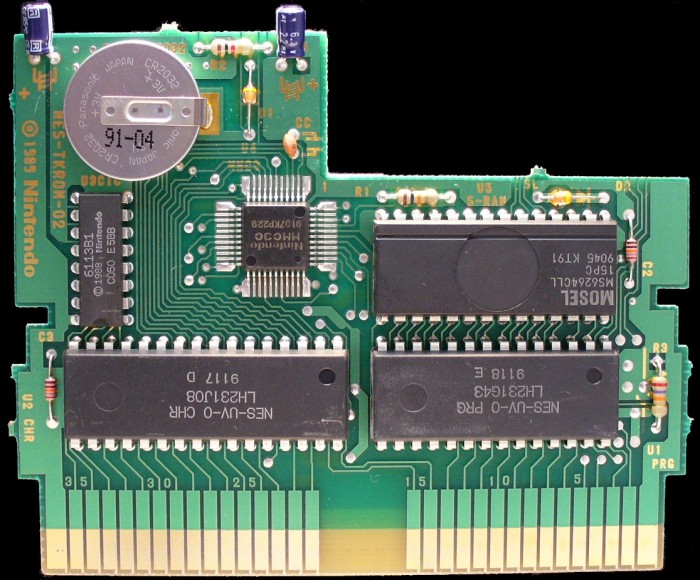

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 43 | Mask ROM 128 KB | DIP-28 | 9118 E | 9118 | |
| U2 CHR | Sharp | LH231J 08 | Mask ROM 128 KB | DIP-32 | 9117 D | 9117 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 050 C | 9050 | |
| U4 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9107 KP229 | 9107 | |
| U5 S-RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9045 KT91 | 9045 |
