Release Info
| Catalog ID | NES-QK-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1991 |
| Publisher | Koei |
| Developer | Koei |
| Players | 1 |
| Peripherals | NES Controller |

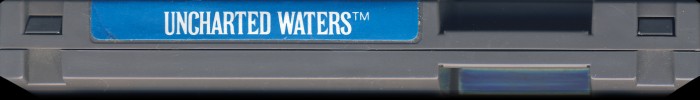

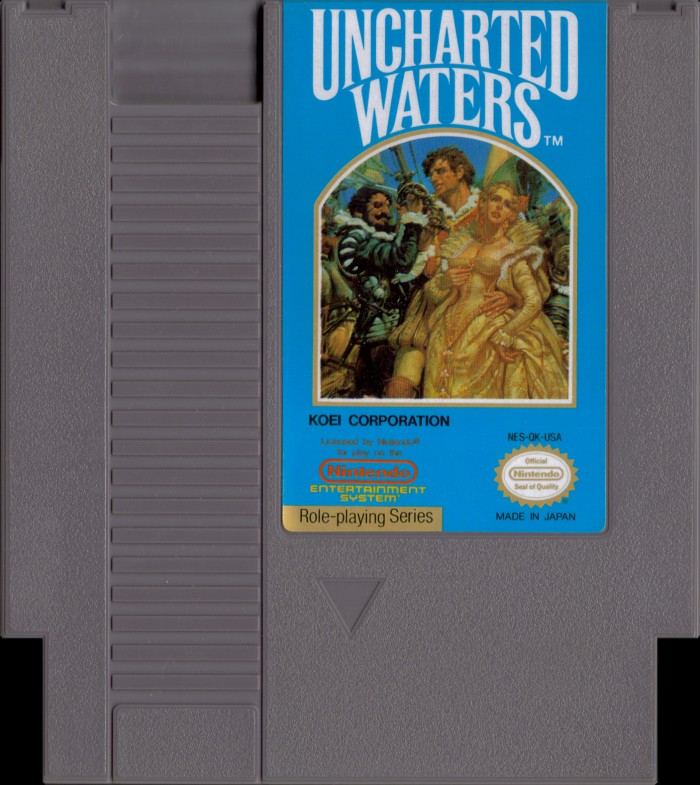

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-QK-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 01 |

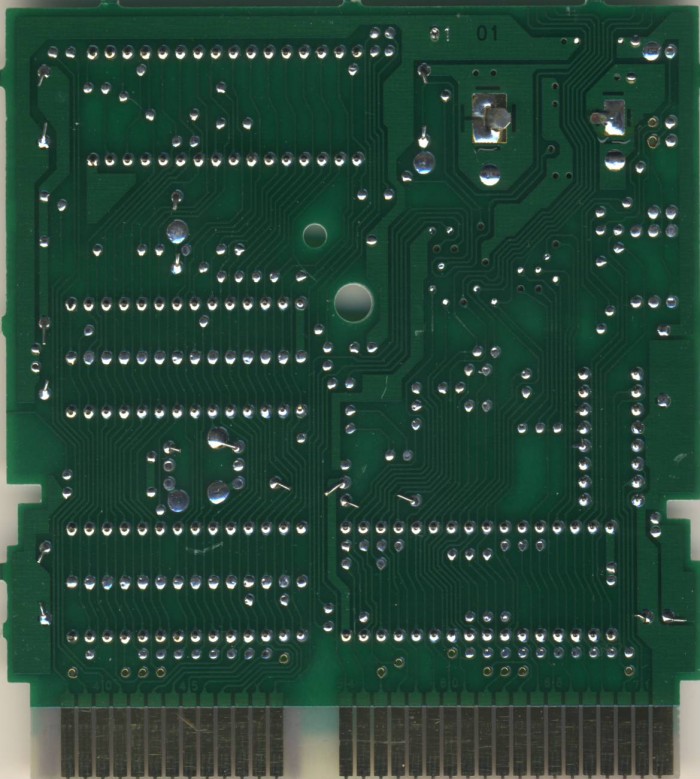

PCB Properties
| Name | NES-ETROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9142 |
| Est First Run | October 1991 |
| PCB Class | NES-ETROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 16 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-QK-0 PRG | 512 KB | CD35E2E9 | 1 |
| CHR0 | NES-QK-0 CHR | 128 KB | D492AFC8 | 1 |
| N/A | ROMs Combined | 640 KB | ACA15643 | 1 |

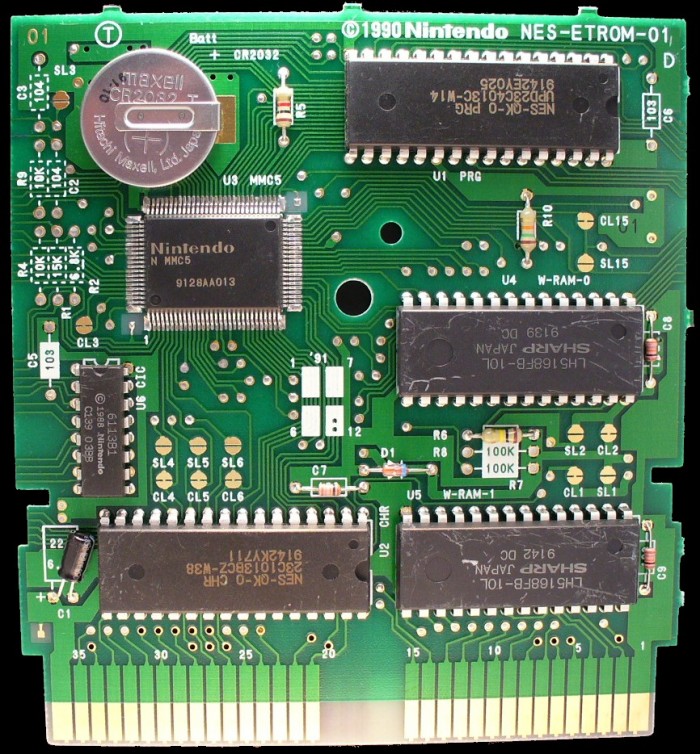

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C4013C W14 | Mask ROM 512 KB | DIP-32 | 9142 EY025 | 9142 | |
| U2 CHR | NEC | 23C1013BCZ W38 | Mask ROM 128 KB | DIP-32 | 9142 KY711 | 9142 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 9128 AA013 | 9128 | |
| U4 W-RAM-0 | Sharp | LH5168FB-10L | SRAM 8 KB | DIP-28 | 9139 DC | 9139 | |
| U5 W-RAM-1 | Sharp | LH5168FB-10L | SRAM 8 KB | DIP-28 | 9142 DC | 9142 | |
| U6 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 139 C | 9139 |
